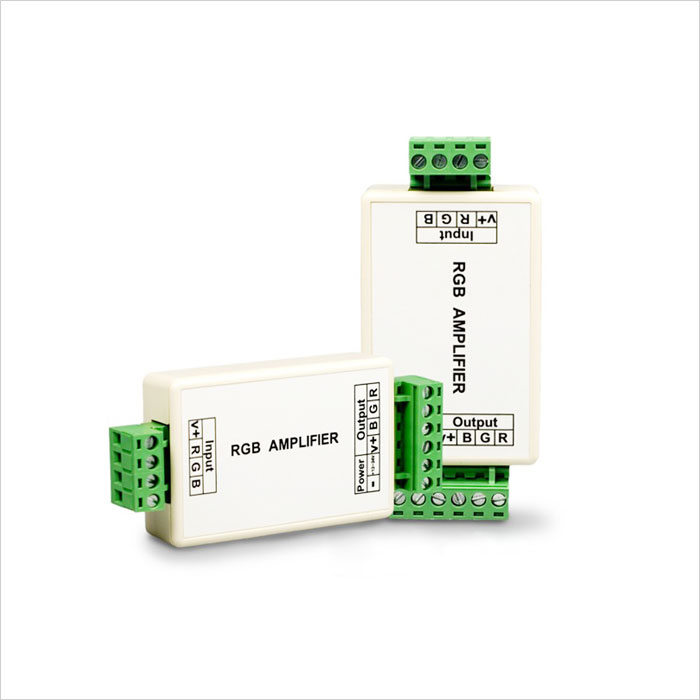

3 Channel Mini RGB (PWM) Amplifier

(7 Reviews) | Write a review

SKU: AMP-RGB-3H

This three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12~24VDC operation.

Warranties & Certifications

TECHNICAL DETAILS
Supply Voltage: DC 12~24V
Max load current: 4 Amps/channel (12 Amps total)
Output: 3 Channel
Static power consumption: < 1 Watt
Output Power: 144 Watts
Function: Amplify RGB Signals using PWM
Product size: (L)98 Χ (W)45 Χ (H)18 mm
Net Weight: 100g
IP Rating: Non-Weatherproof
Standards And Certifications: RoHS Compliant
Working temperature: -20~60°C
