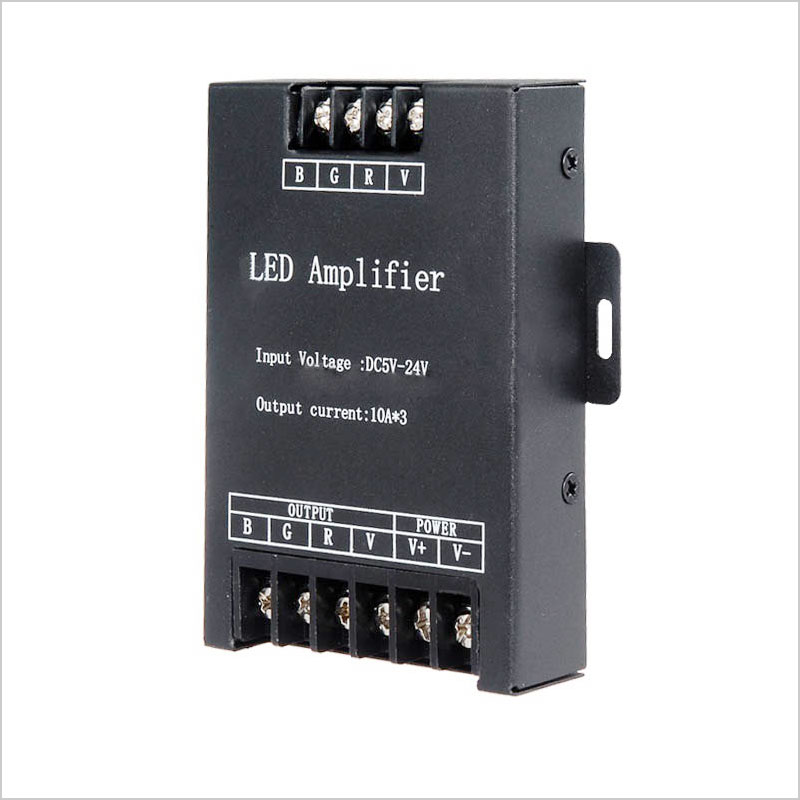

Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output.
Used to extend your run of RGB 12/24v lighting product from your controller - Up to 300W@12vDC or 600W@24vDC
Supports PWM (Pulse Width Modulation) control
You can stack amps (2x repeaters connected = 16A/Ch)
Input Power:  DC5V ~ DC24V
Output Power: 120(5v) 288W (12V)  576W (24V)
You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.

Warranties & Certifications

TECHNICAL DETAILS
Mounting Options:    Wall Mount, Other
Voltage:    5v-24v
Wattage:    10A/Ch
Power Rating Max Amps:    3Ch @ 10A /Ch 30A Max
Output Power:    120(5v) 288W (12V) 576W (24V)
Number Of Chanels:    3
Rated Amps / Ch    8A-10A:   Max 10A
Power Input: Connection Type, Voltage, Amperage    Screw Terminal DC12V-DC24V (+)/(-) note for 12v strips use 12v input
Output Connection Type:    Screw Terminal Strip
Weight / Item:    380g
Product Size: (L)x(W)x(H)    (L) 5.82" x(W) 3.42" x(H) .90" in (L148×W87×H23mm)
Comes With:    RGB Indicators on outputs
Available Options:    We can also get these in a constant current version 350mA and 700mA
