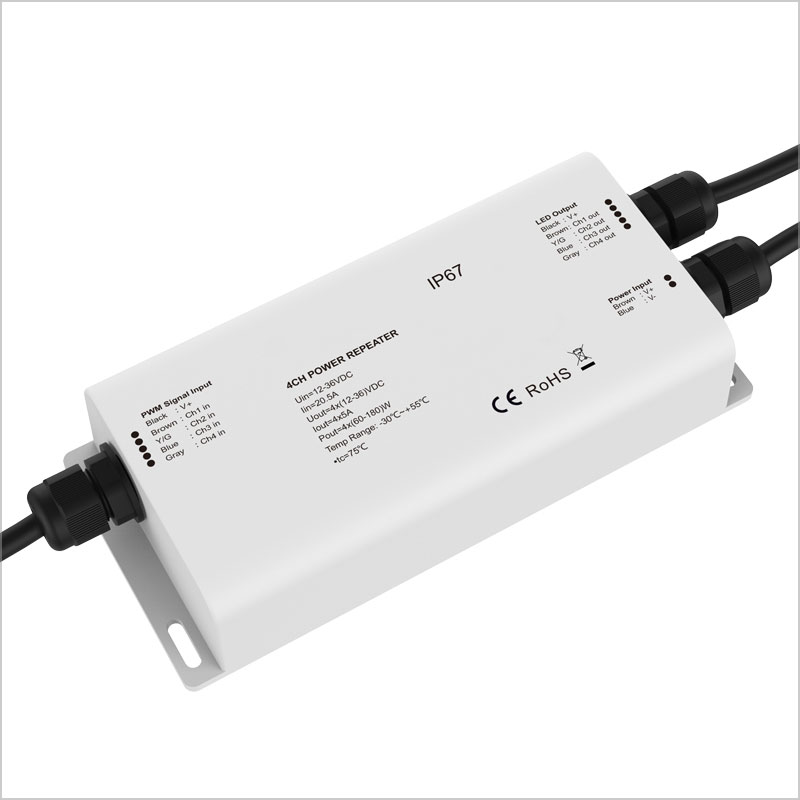

SmartBrightLEDs LED Waterproof IP67 power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect.

IP67 waterproof /4 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation

Features
Waterproof 12-36V constant voltage power repeater with IP67 rating, suitable for outdoor and damp environment.
4 channel, 5A per channel.
To receive PWM signal control.
Power repeater in series or in parallel to expand output unlimitedly.
Apply to single color, dual color, RGB or RGBW constant voltage LED strip or module.

Technical Parameters
Input voltage: 12-36VDC
Input current: 20.5A
Input signal: PWM
Output voltage: 4 x (12-36)VDC
Output current: 4CH,5A/CH
Output power: 4 x (60-180)W
Output type: Constant voltage
IP rating: Waterproof IP67
Certification: CE,EMC,LVD
