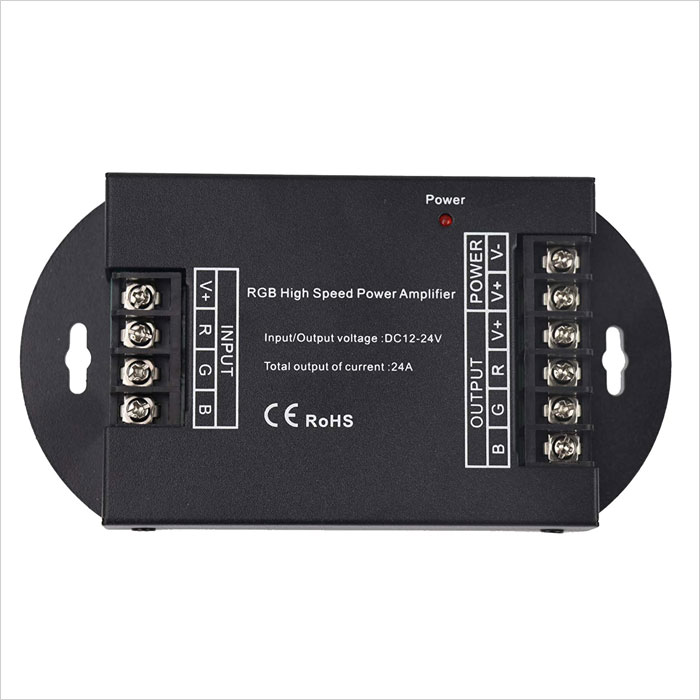

RGB High Speed Power Amplifier - DC12~24V
SKU:
RGB-AMP-A24
Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade.
The outlet should be connected correctly according to the color shown in the wiring diagram.
Can't be wrong attached, in order to avoid short-circuit.
Warranties & Certifications
TECHNICAL DETAILS
| Working temperature | -20-60℃ |
| Input voltage | DC12~24V |
| Signal voltage | DC 12V~24V |
| Input signal | RGB common anode PWM dimming signal |
| Dimension | L145*W76.8*H20.6mm |
| Output | 3 channel |
| Connection mode | Common anode |
| Output current | max 8A (each channel) Output power: max 288W(12V), max 576W(24V) |
| Delay time | 20NS |
| Standards And Certifications | RoHS Compliant |
**All specifications are subject to change without notice.
