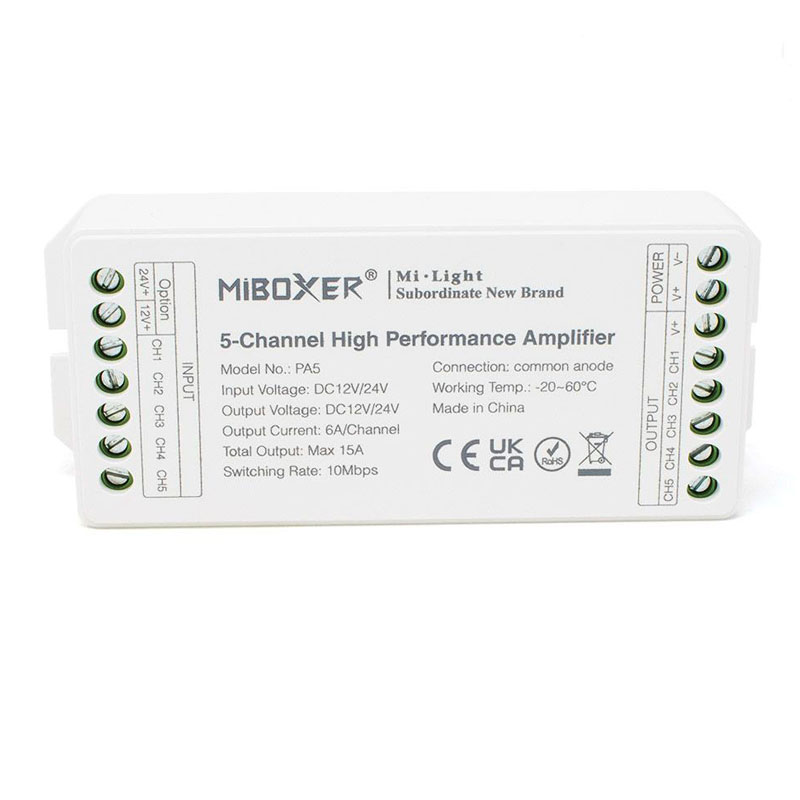

This high performance five channel data amplifier from Mi-Boxer is an ideal product for when you want to control multiple low voltage LED products together from one controller.  The unit works by copying the output signal from the controller and synchronising it with the output from the data repeater.  For example, when controlling colour changing products if you want to run a program such as fading through the colours, the data amplifier will keep all the connected products synchronised together.
The unit incorporates a high speed optical coupler with a 10Mbps output rate ensuring an accurate synchronisation between the data input and output sides of the amplifier and it will work with all types and brands of PWM controllers.  The data amplifier will can power low voltage 12v or 24v DC five channel (RGB+CCT) LED products products up to a maximum of 6A / channel however the overall load across all channels must not exceed 15A.  Multiple data amplifiers can be linked together indefinitely as each unit amplifies the signal from the previous unit.

A constant voltage 12v or 24v DC driver must be used with this data amplifier and the same voltage product must be used on the output side of the data amplifier as the signal on the input side.

Feature

1. 5 Channel Amplifier
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Smartphone Compatible
4. 30m signal transmitting and synchronization between receivers
5. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    12v / 24v DC
Output Voltage:    12v / 24v DC
Connectivity:    RF
Size:    L115mm x W48mm x H27mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max15A
Output Max:    6A/Channel
