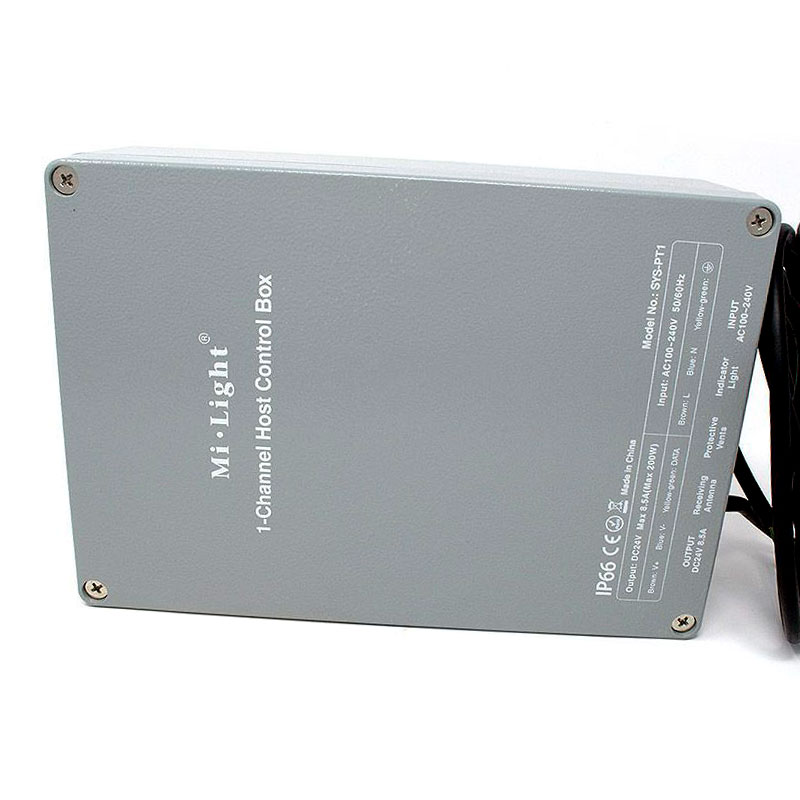

    SBL-SYSPT1 Mi-Light 2.4GHz 1 Channel Host Control Box

      (3 Reviews) | Write a review
    SKU: SBL-SYSPT1
    Discontinued
    Starting at: $396.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    This one zone Host Controller and 2.4GHz Receiver from Mi-Light can control up to 200w of Mi-Light SYS lighting products in a single zone.  Simply connect to a 100v-240v AC 50/60Hz mains supply to the power input and then connect the 24v data output to your SYS RGB+CCT lighting products as detailed in the data sheets, then pair it to compatible 2.4GHz M-Light / Mi-Boxer RF handset or Wall Panel RF controllers.    The controller will power up to a maximum of 200w of lighting, if additional lighting is required you will need to boost the power with the SYSPT2 Single zone Amplifier which you connect to the output of the Host Controller, this will allow you to expand your lighting to include additional products up to an additional 200w.
    Important Note: The Host Controller and amplifier is only suitable for use with the SYS series of Mi-Light Lighting products, it will not work with other lighting products in the Mi-Light / Mi-Boxer range.
    The host controller / receiver features auto transmitting & synchronising functions so when multiple host controller / receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.
    In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).

    Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

    Feature

    1. Host Control Box
    2. Smartphone Compatible
    3. 30m signal transmitting and synchronization between receivers
    4. Quick and easy to pair with handsets and wall panels

    Technical Specification
    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Controller / Receiver
    IP Rating:    IP66 Splashproof
    Guarantee Period:    5 Years
    Current:    Max 8.5A Output
    Input Voltage:    100v - 240v AC
    Output Voltage:    24v DC
    Connectivity:    RF
    Size:    L184mm x W81mm x H263mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Transmitting Power:    6dBm
    Operation Frequency:    2.4GHz
    Operating Temp:    -20~60°C
    Total Output:    Max 8.5A
    Output Max:    Max 200W
