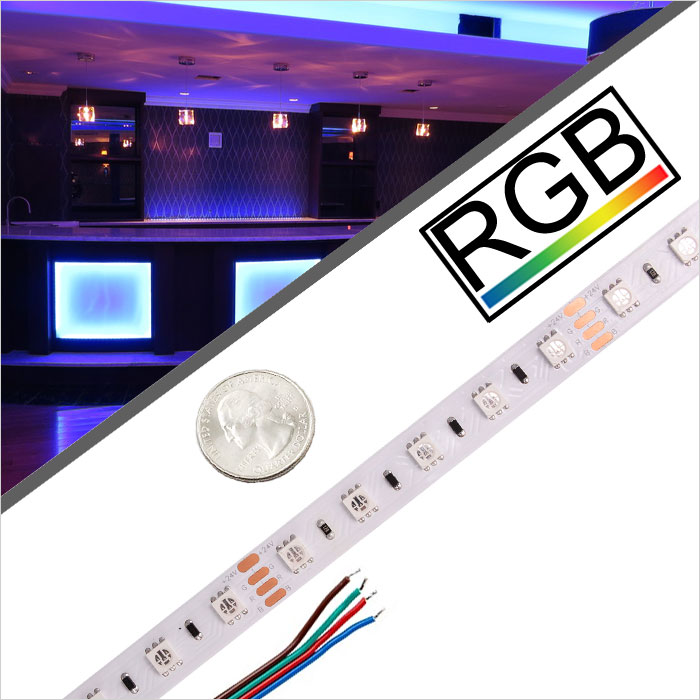

20m Ultra Length RGB LED Strip Light - High Brightness Color-Changing LED Tape Light - 24V - IP20
We at Smart Bright LEDs are attuned to the needs of lighting professionals and contractors. That’s why our Color Changing series includes this 20m reel of color-changing LED strip lighting, perfect for completing multiple projects while cutting costs and reducing waste. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.
If you order an RGB flexible light strip, you will need a RGB controller.
Features:
- 24 VDC input
- Strip width measures 12mm
- 3M™ adhesive backing for surface mounting
- 0-100% dimmable
- Lifetime exceeds 50000 hours
- CE certified
- Lifetime warranty
Warranties & Certifications
Application & Use
Color controllable cove lighting, Signage, Backlighting, Edge lighting, Cabinets, shelves lighting, Accent lighting locations, Under cars and motorcycles, Store display lighting, Under cabinet lighting, Above cabinet lighting, Hotel lobbies.
TECHNICAL DETAILS
Voltage | 24V DC |
LED Color | RGB |
Connection Type | Pigtail |
LED Beam Angle | 120 degree |
IP Rating | Non-Weatherproof |
LED Type | 5050 SMD |
Strip Width | 12mm (0.47in) |
LED Density | 18 LEDs/ft |
Peak Power Per Meter | 12 W/m |
Dimmable | Yes |
Rated Lifespan | 50,000 hours |
Length | 65.6ft (20m) |
Wavelength | 470 nm, 525 nm, 630 nm |
Power Consumption | 240 Watts |
Standards And Certifications | CE, RoHS Compliant, UL Listed |
**All specifications are subject to change without notice.
Incorrect Use:
Packaing Diagram
Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during installation process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory. Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.
Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage. |
** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
