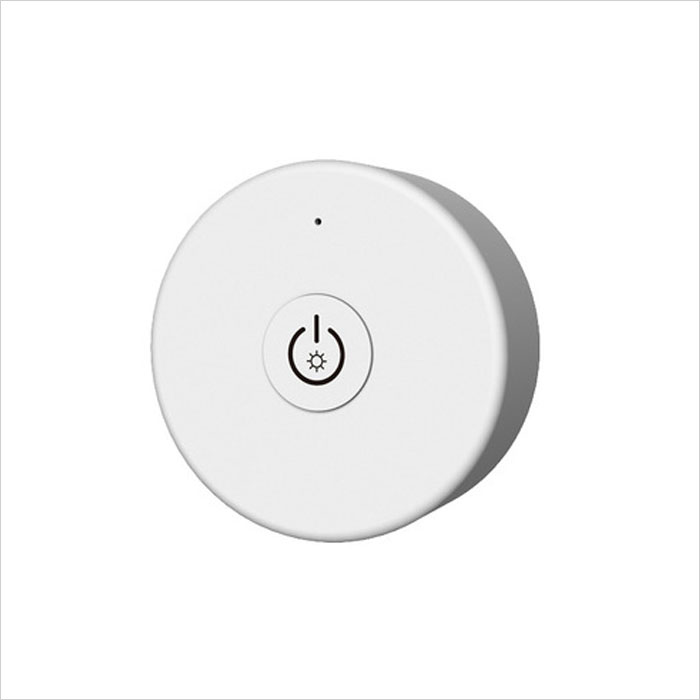

Mini RF Single Color Push Button LED Dimmer Switch w/ Magnetic Base for EZ Dimmer Controller
SKU:
EZD-MJJC-R1-1

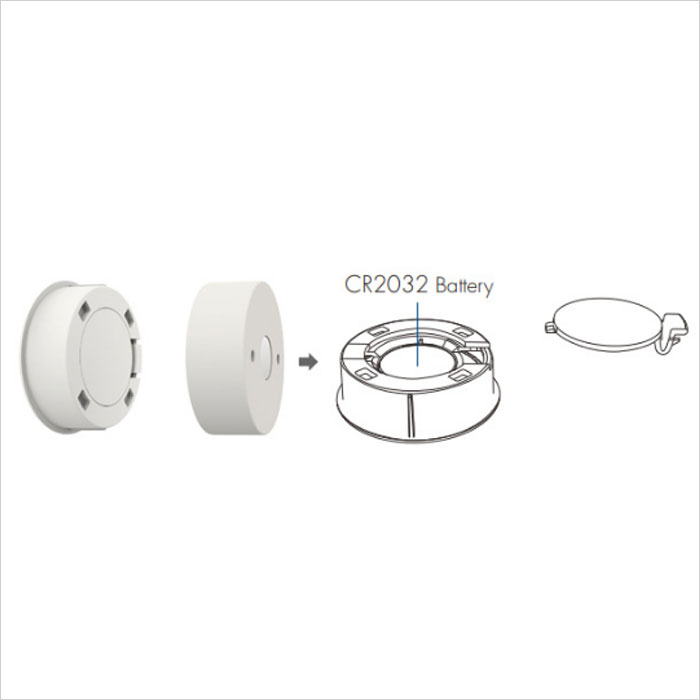

Designed for use with the Wireless LED 1-Channel EZ Dimmer Receiver or Wireless LED 4 Channel EZ Dimmer Receiver with Channel Pairing Option, this push-button LED dimmer switch features a magnetic base and provides both standard on/off controls as well as the ability to dim and brighten LED light strips. The push-button dimmer transmits an RF signal to the wireless receiver from up to 300' away in open air. The wireless dimmer includes 2 mounting screws and a required 3V CR2032 battery installed.
Features:
- One-key RF Remote Controller
- Each remote can match one or more receiver
- Magnet on the back which can be easily stuck any metal surfaces.

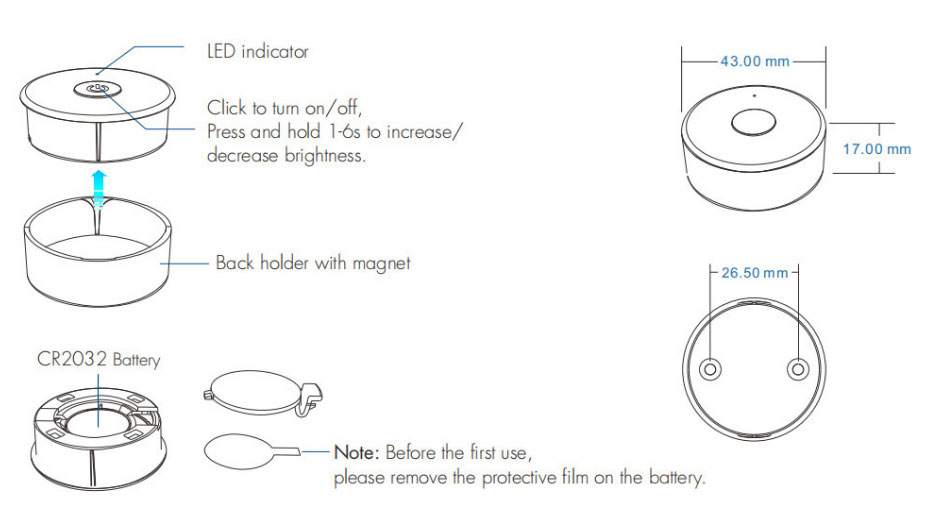

- Short touch: Turn on or off light
- Long touch: brightness adjustment
Warranties & Certifications
Applications: Can use for LED strip, LED panel light, LED ceiling light and other LED lighting
TECHNICAL DETAILS
| Battery Type | 1 x CR2032 |
| Channels | 1 Channel |
| Control Type | Handheld (RF) Remote |
| Dim Control | Push Button Control |
| Finish | White |
| Operating Temperature | -20~+50 °C (-4~+122 °F) |
| Radio Frequency | 868 MHz |
| Remote Range | Up to 30m (98') |
| Standards And Certifications | CE, FCC, RoHS Compliant |
| Volts | 3 VDC |
