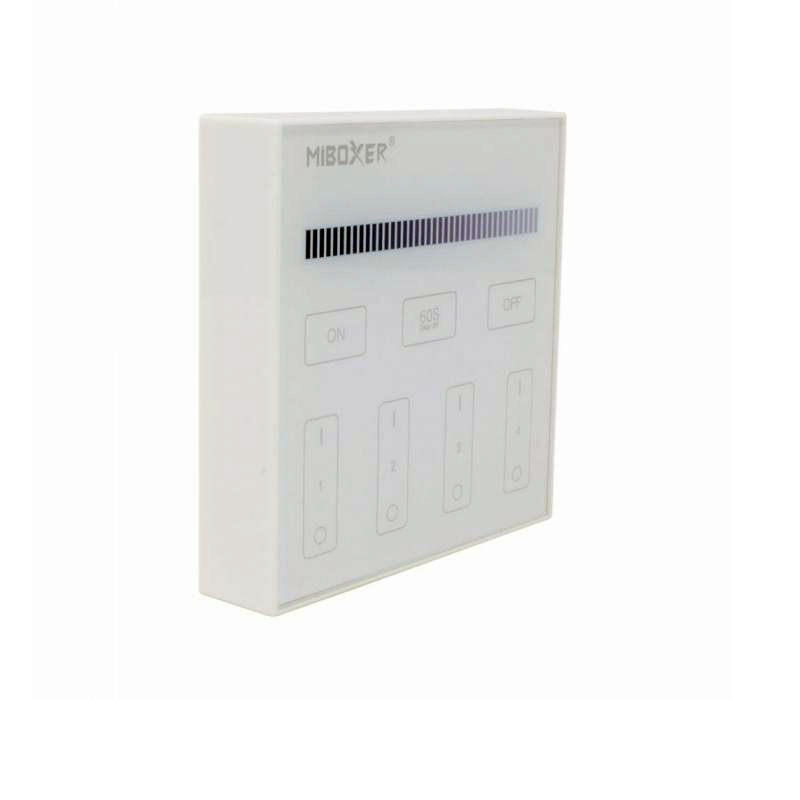

    SBL-B1 MiBoxer Single Colour 4-Zone Wall Panel Controller (battery powered)

      (2 Reviews) | Write a review
    SKU: SBL-B1
    Discontinued
    Starting at: $39.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    With the capacity to control up to four zones of single colour LED lighting together or individually, this wall panel features a toughened glass front with a touch sensitive dimming slider control, master power On/Off and individual power On/Off buttons for each zone.  All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
    As an unlimited number of receivers / lights can be paired to each zone on the wall panel, it is possible to control multiple products in each of the four zones.  Simply pair each product to your chosen zone and to operate individually, switch on the zone with the appropriate button and select the required brightness level using the touch slider control. A master On/Off button will switch all the zones On/Off together.
    In addition a handy timer function will delay the switch off of your lighting so that when your luminaires are switched on you can select a 60 second Off timer.  This is a very useful function which gives you time to exit a room or area before the lights turn off.
    Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

    Feature:

    1. Dimming touch slider
    2. Dimming slider
    3. 4 Zones control
    4. Lights off timer
    5. Optional sound indication on button press
    6. Quick and easy to pair with receivers
    7. 5 Year Guarantee

    Technical Specification


    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    Battery Powered
    Connectivity:    RF
    Size:    L86 x W86x H16mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Modulation Method:    GFSK
    Transmitting Power:    6dBm
    Standby Power Consumption:    20uA
    Operation Frequency:    2.4GHz
    Battery Type:    2 x AAA Batteries
    Operating Temp:    -10 to 40ºC
