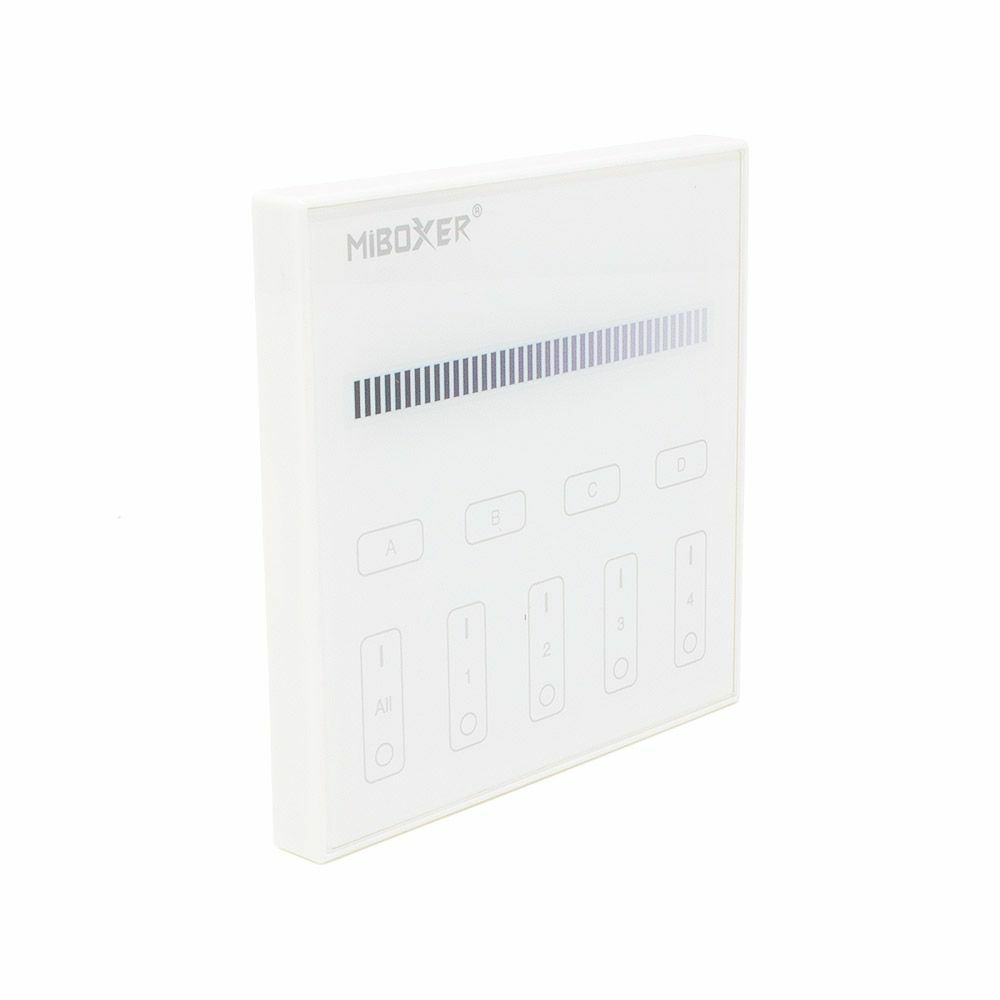

This stylish DALI DT6 single colour wall panel from Mi-Boxer is an ideal product to integrate into your DALI system using standard DALI DT6 protocols.  It will enable you to control up to four zones of single colour lighting with four programmable scenes.  The wall panel is powered from the DALI BUS so no additional power supplies are required.  The signal from the wall panel is sent along the DALI BUS lines to control the lighting that is set to the same DALI address.
The various parameters can be set and adjusted using the function buttons and digital display on the rear of the wall panel.  Please set these as required, details of which can be found in the included manual.
When setting up your DALI system why not consider the other DALI products available in the Mi-Boxer range, from wall panels to DALI Dimmers and DALI BUS power supplies, all our DALI products work together seamlessly creating the ideal DALI network.

Product Details

1. DALI DT6 Dimming slider
2. Built-in programs
3. Optional sound on button press
4. Quick and easy to pair with receivers
5. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    DALI Bus Powered
Connectivity:    DALI DT6 Protocols
Size:    L86 x W33 x H86mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    <4mA@16V
Operation Frequency:    2.4GHz
Battery Type:    DALI Bus Standard: IEC62386
Operating Temp:    -10 to 40ºC
