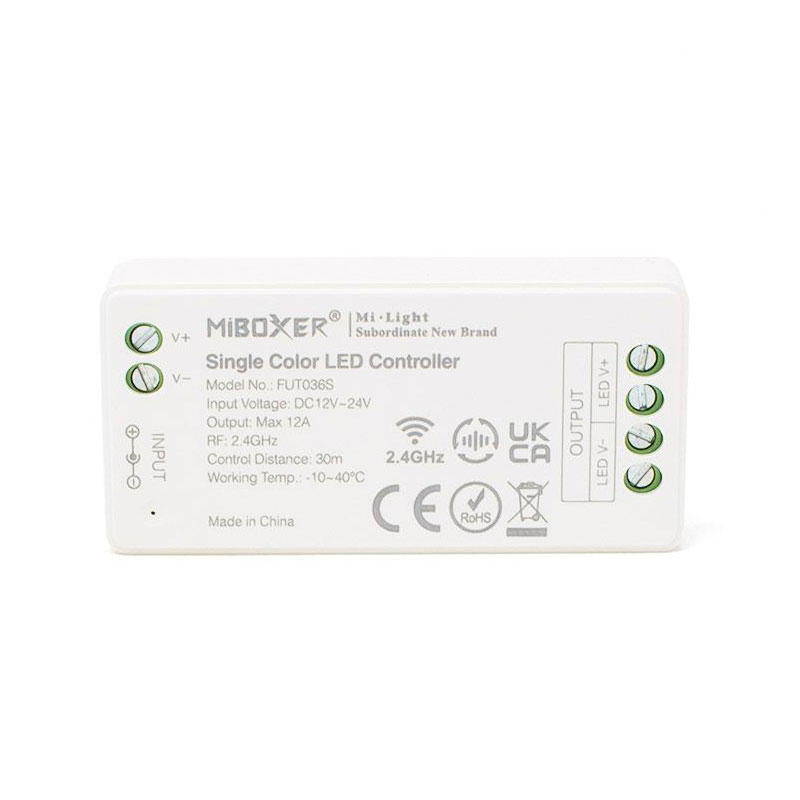

    SBL-FUT036S MiBoxer 2.4GHz Single Colour LED Controller

      (7 Reviews) | Write a review
    SKU: SBL-FUT036S
    Discontinued
    Starting at: $32.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    This Wireless Single Channel RF Receiver from Mi-Light is compatible with 2.4GHz RF controllers and will enable you to control your low voltage (12v or 24v) single colour LED lighting products.  The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.  The maximum output current on this unit is 12A and the PWM frequncy can be adjusted from 500Hz to 8KHz.
    In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).

    Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

    Feature

    1. 2.4GHz
    2. For colour single colour LEDs
    3. Compatible with Mi-Light / MiBoxer handsets and wall panels
    4. Smartphone Compatible
    5. 30m signal transmiting and synchronization between receivers
    6. Quick and easy to pair with handsets and wall panels

    Technical Specification
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    12v / 24v DC
    Connectivity:    RF
    Size:    L74.5 x W36 x H17mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Transmitting Power:    6dBm
    Operation Frequency:    RF 2.4GHz
    Operating Temp:    -10 to 40ºC
    Total Output:    Max 12A
    Output Max:    12A/Channel
    Smart Synchronisation:    Version 2.0
