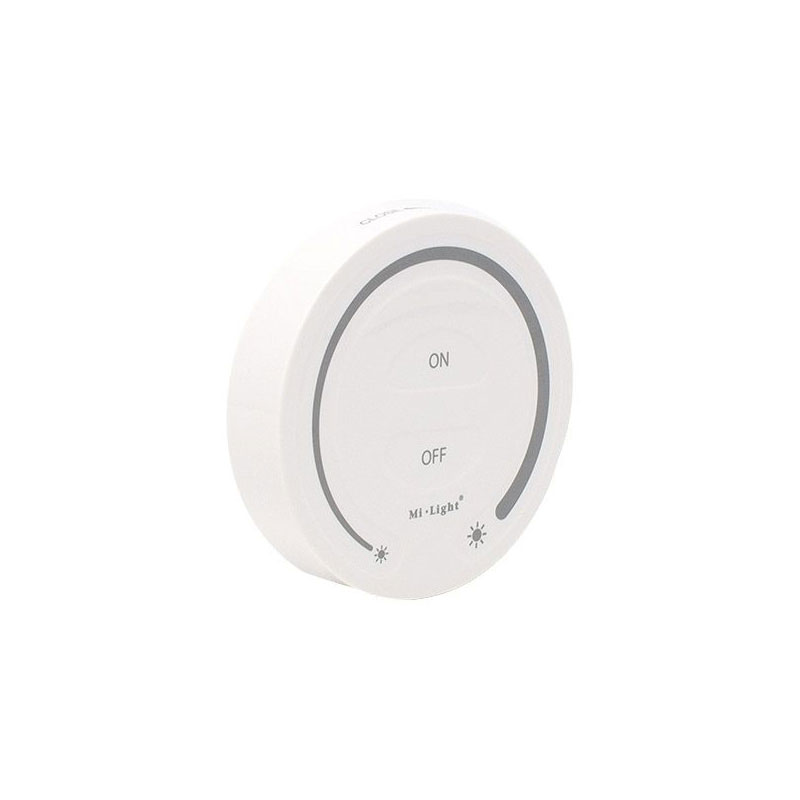

This Wireless Single Channel Wall Panel enables you to switch On/Off and smoothly dim your single colour LED lighting products when paired to a compatible Mi-Light Receiver or Light.  Multiple products can be paired to the wall panel and providing they are all within 30m of each other and one unit is within 30m of the wall panel, all the products in the group will synchronise together wirelessly so no need for interconnecting control cables etc.
The wall panel requires 2 x AAA batteries, we suggest using high quality, new batteries to get the best out of your product.  The On/Off and Dimming controls use an IC high precision touch sensitive system for a more stable and sensitive operation.  To install the wall panel simply fit the backing plate using the fixing kit provided and attached the wall panel by twisting into place.  The wall panel can easily be removed for battery replacement or repositioning by simply twisting to release it from the backing plate.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. Dimming touch slider
2. Wireless transmitting
3. 30m Control Distance
4. Night light mode
5. Battery powered
6. Quick and easy to pair with receivers
7. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    RF
Size:    L82 x W83 x H26mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    -20~60°C
