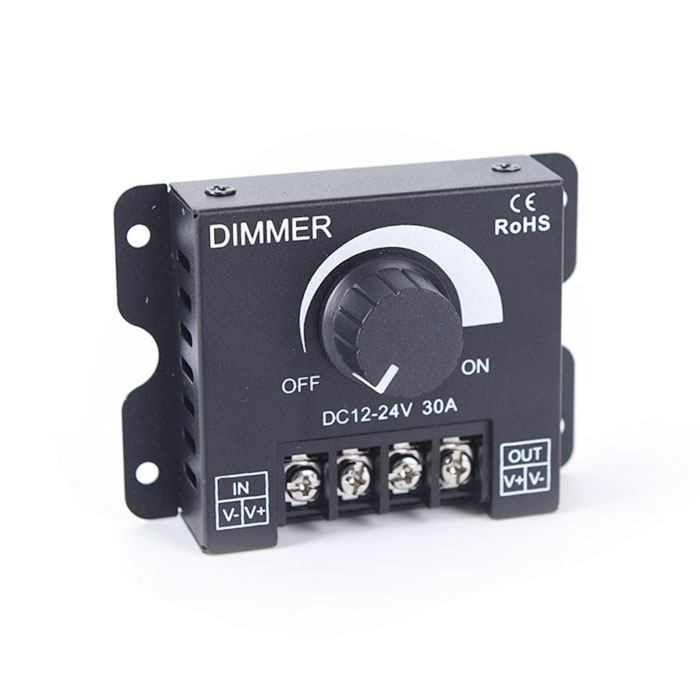

SDK-30A 12~24 Volt DC Single Color Switch Dimmer Controller
SKU:
SDK-30A
SDK-30A universal single color LED dimmer. Can dim most 12VDC or 24VDC LED products from 0%-100% using a Pulse Width Modulation(PWM) circuit knob control. Has screw terminal connect for power in and out connections and has a maximum load of 30 Amps.
TECHNICAL DETAILS
Condition: 100% New Brand
Material: Metal
Channels: 1 Channel
Brightness Adjustable Rang: 0-100%
Input Voltage: DC 12V-24V 30A
Input Current: 0-30A, Less than 30A
Power: 12V 360W, 24V 720W
Static Power Consumption: 1W
Working Temperature: -20-60 degree centigrade
Led Dimmer Dimension (L x W x H): Approx. 85 x 66 x 20mm / Approx.3.3 x 2.6 x 0.8inch
