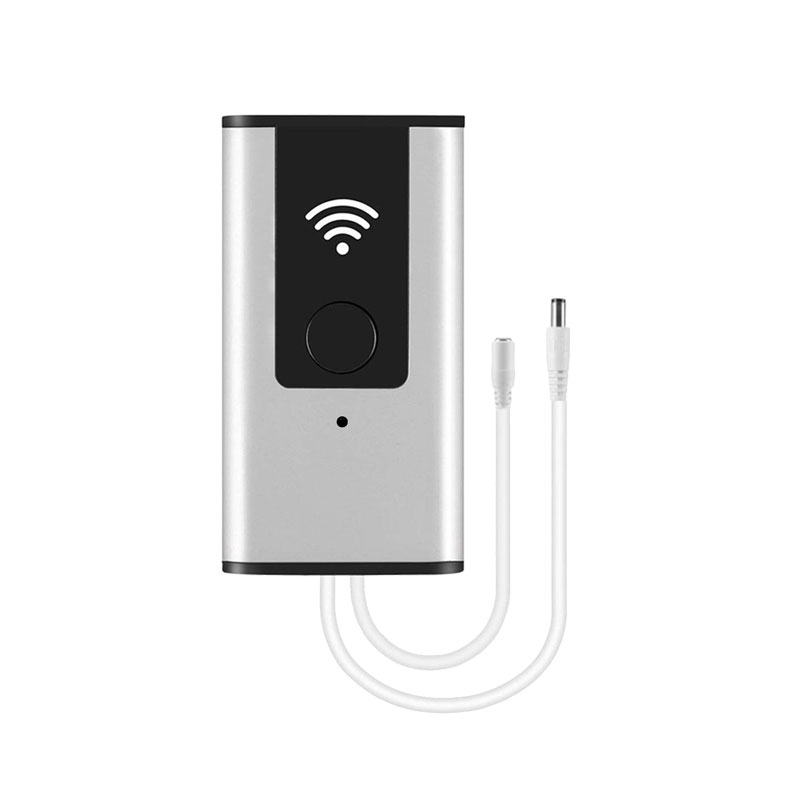

Wi-Fi/Bluetooth LED controller lets you operate single-color LED strip lights with your Alexa or Google Assistant-enabled devices or your smartphone. Link the Smart Life app by Tuya with your Amazon Echo, Google Home, etc., and adjust brightness or turn lights on/off. Additional features include conditional (if/then) programming, timers, scheduling, and mode selection memory. The plug-and-play Wi-Fi LED controller has a maximum load capacity of 6 amps (12 VDC) and 3 amps (24 VDC). Includes female DC barrel connector for power and male barrel connector for strip light connection. Barrel connector adapters are available for pigtail setup. Install the controller with the included screw and bracket or 3M adhesive mounting pad.

Product Details:

• Aluminum and polycarbonate housing
• 12–24 VDC
• 72 W / 6 A max input / output (12 VDC), 72 W / 3 A max input / output (24 VDC)
• DC barrel (female, 5.5 mm x 2.1 mm) input, DC barrel (male, 5.5 mm x 2.1 mm) output
• 2 year warranty

Specifications
Amps Per Channel:    3 Amps/CH, 6 Amps/CH
Channels:    1 Channel
Current Rating:    3A @ 24VDC, 6A @ 12VDC
IP Rating:    Non-Waterproof IP20
Input Connection Type:    5.5 mm x 2.1 mm DC barrel
Input Voltage DC:    12-24 VDC
Output Voltage:    12-24 VDC
Receiving Range:    Up to 25m (82ft)
Remote:     Alexa Built-in/Works with the Google Assistant, Smartphone (Bluetooth), Smartphone (WiFi or WiFi Hub)
Standards And Certifications:    RoHS Compliant
Supported Smart Phone Apps:    Smart Life by Tuya
Type:    Single Color Dimmer
Package Weight: 1.7oz (0.05kg)
Package Dimensions: 3.75" (10cm) x 2.5" (6cm) x 1" (3cm)
All specifications are subject to change without notice.
