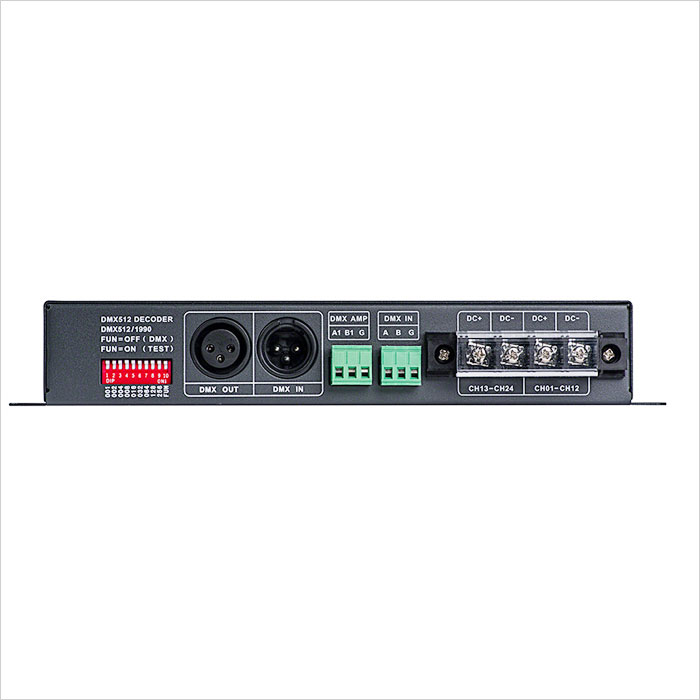

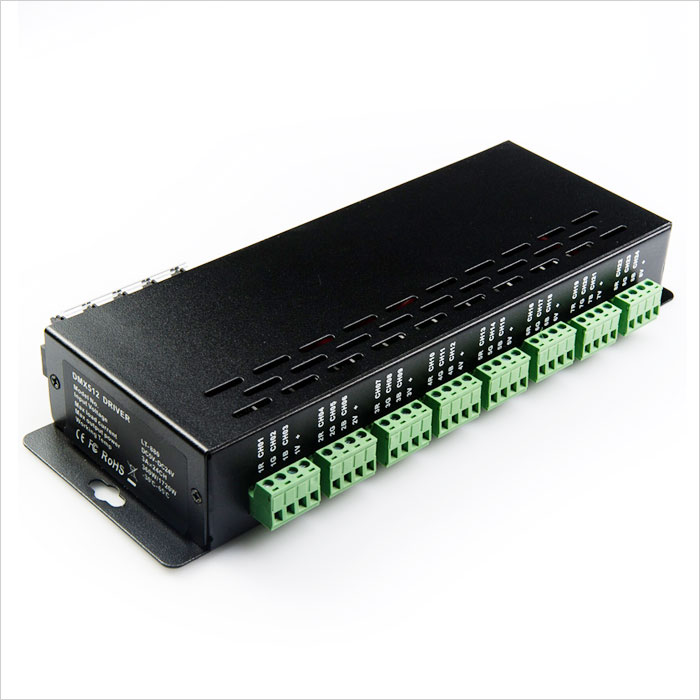

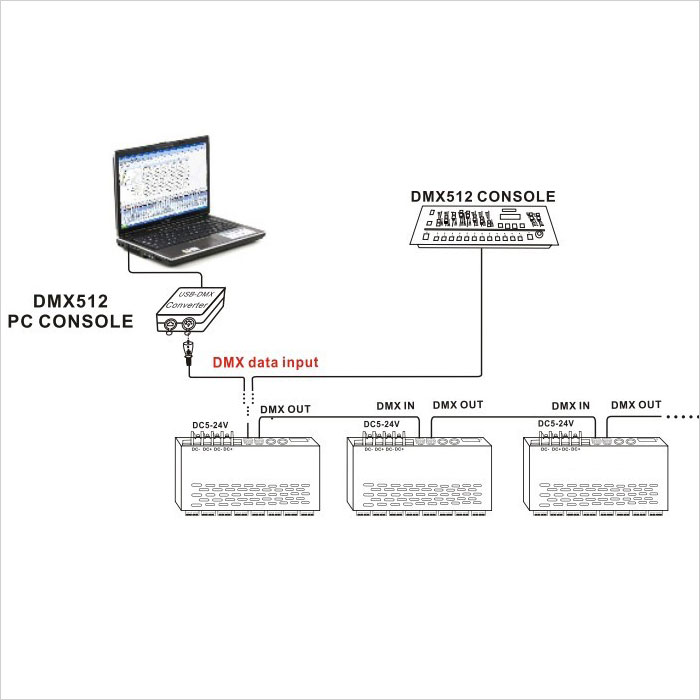

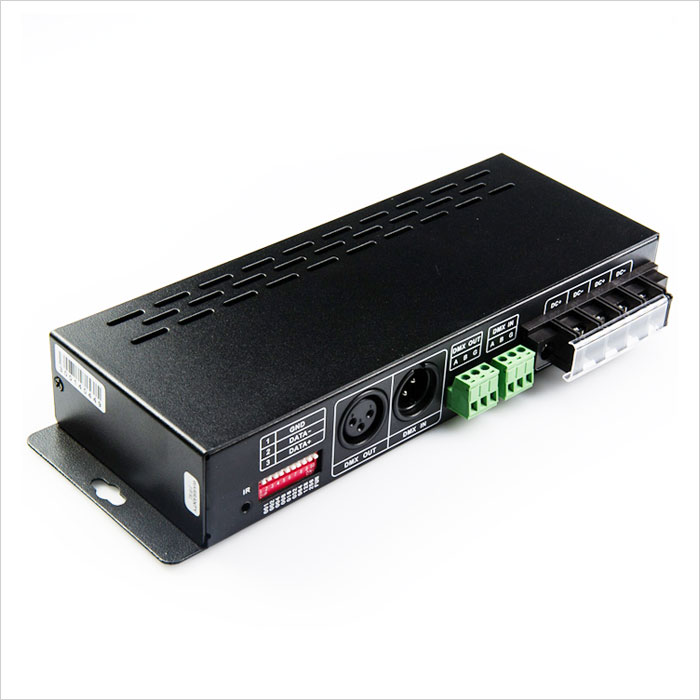

This 24 channel DMX512 decoder can control up to 24 different 12 VDC LED products or 8 RGB LED light bars or strips. The decoder is made to be compatible with any brand of DMX controller console and signaling rates and uses an 8-bit standard DMX transmission. Decoder can run in stand-alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit gray scale output per channel. Maximum load is 3 amps per channel—72 Amps total.

Warranties & Certifications

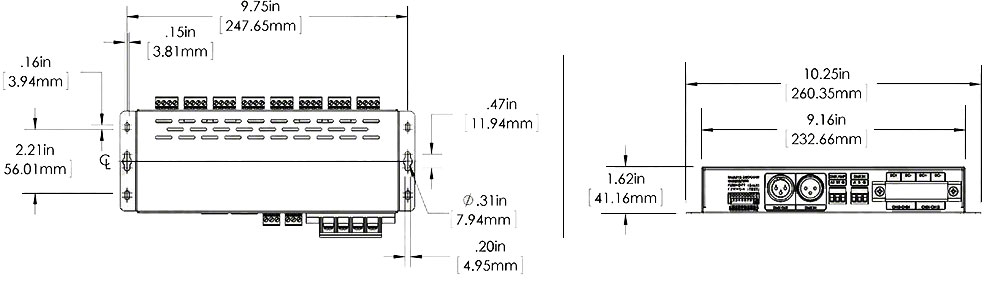

Dimensional Drawings

Application & Use
Home Lighting, Home Accent Lighting, Remote Controlled Light, Smartphone Accessory Light.

TECHNICAL DETAILS
Amps:  72 Amps
Amps Per Channel:  3 Amps/CH
Channels:  24 Channels
Connection Type:  Screw Terminals
Input Voltage DC:  5~24 VDC
Remote Control:     DMX
Special Features:  Custom Colors
Standards And Certifications:  RoHS Compliant
Volts:    5~24 VDC
Package Weight:  13.4oz (0.38kg)
Package Dimensions:  7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
