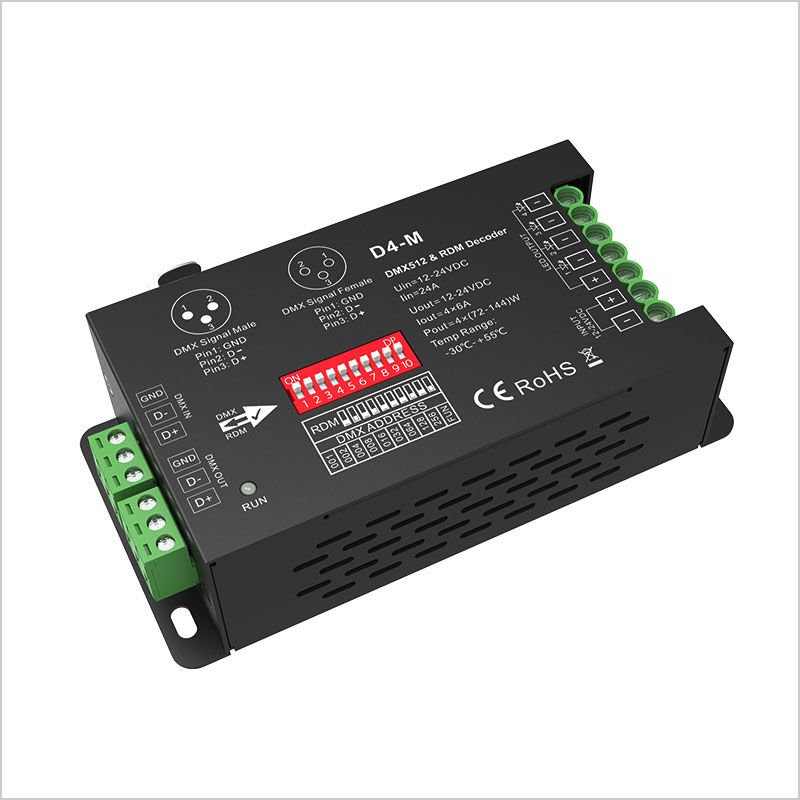

DS series 4 Channel Decoder converts DMX and RDM signals for single color, CCT and/or RGB/W LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-directional communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 4 channels, it allows a max of 6A and 144W per channel.

Settings and features are selected with the use of integrated DIP switch. Green terminal DMX interface with photoelectric isolation and signal amplifier function improves signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. Stand alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes 2 built-in RGB programs with adjustable speed and brightness levels.

Product Details:
12-24 VDC
Set DMX start address via DIP switch

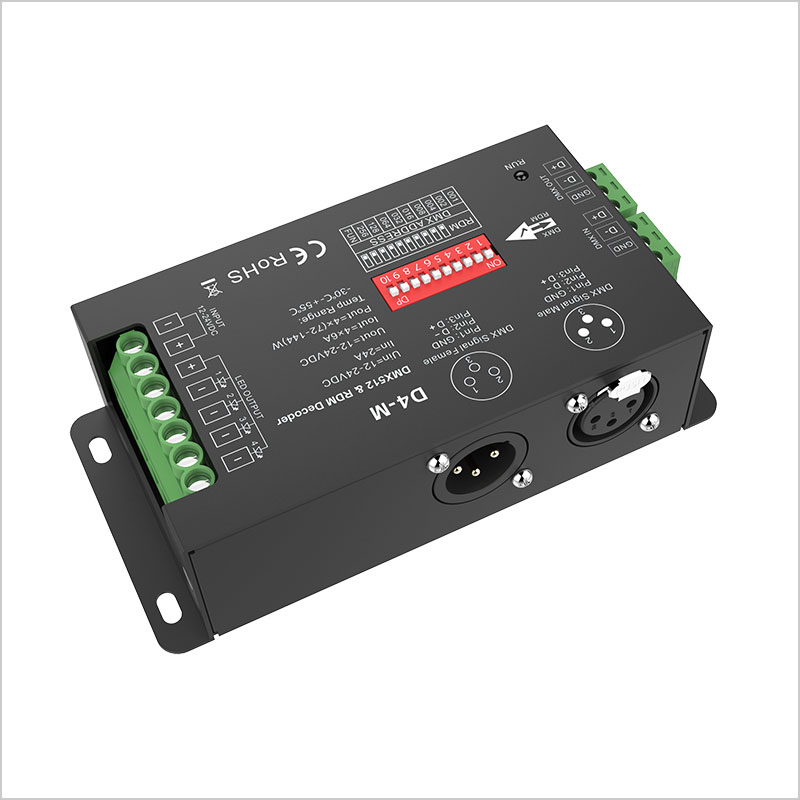

3-pin XLR and green terminal DMX signal IN and OUT
Max load current 24A
Integrated mounting tabs
Operating temperature: -22°–131° F (-30°–55° C)
CE certificate
Protected against: overheat, overload, and short circuit protection
Rated IP20 for dry locations

Specifications
Amps Per Channel:    6 Amps/CH
Certifications/Compliance:    CE
Channels:    4 Channels
Control Type:    DMX
DMX In/Out:    Screw Terminals
Electrical Connection:    Screw Terminals, XLR
Environmental Rating:     Non-Waterproof IP20
Input Voltage Range:    12-24 VDC
Max Input Current:    24 A
Max Output Current:    6 A per channel (x4)
Max Output Wattage:    72–144 W / channel (depending on voltage)
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Operating Voltage Range:    12~24 VDC
Product Materials:    Steel
Package Weight: 12.5oz (0.35kg)
Package Dimensions: 5.75" (15cm) x 3" (8cm) x 1.75" (4cm)
All specifications are subject to change without notice.
