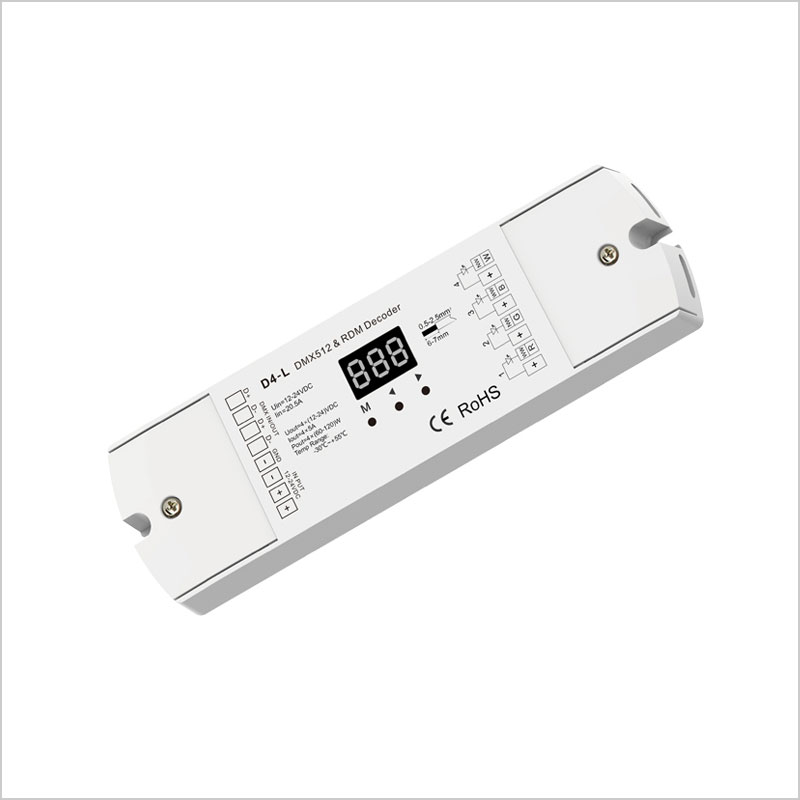

DS series 4 Channel DMX Decoder allows up to 4 channels of LEDs to be controlled from existing DMX systems. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 4 channels, it allows a max of 5A and 120W per channel. Stand-alone function works as an RGB controller when no DMX signal is present. This feature includes 30 built-in RGB programs with adjustable speed and brightness levels.

Product Details:
1-4 channel configuration
DMX IN and OUT
DMX address selction LED display
Standalone function with RGB-W Programs
60-120 W per channel (depending on voltage)
12 VDC, 24 VDC
Rated IP20 for dry locations
RoHs, CE certificate
5 year warranty

Specifications
Amps:    20.5 Amps
Amps per Channel:    5 Amps/CH
Channels:    4 Channels
DMX In/Out:    Screw Terminals
IP Rating:    Non-Waterproof IP20
Input Connection Type:    Screw Terminals
Input Voltage Range:    12-24 VDC
Max Output Wattage:    60-120 W / channel (depending on voltage)
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Output Current:    5.0 Amps
Remote:     DMX
Standards And Certifications:    CE, RoHS Compliant
Package Weight: 16oz (0.45kg)
Package Dimensions: 7" (18cm) x 2.5" (6cm) x 1.5" (4cm)
All specifications are subject to change without notice.
