DMX512 Color Controllers
Smart Bright LEDs DMX512/RDM series products are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols,including RF DMX master, panel DMX master, DMX constantvoltage or constant current decoder, signal converter and signal amplifier, providing a complete DMX lighting control solution.
1. The DMX512 console or master controls single color, color temperature, RGB, RGBW, RGB+CCT and other LED lights.
2. DMX decoder or signal converter converts the standard DMX512/1990 signal into constant voltage PWM, constant current PWM, AC Triac, 0/1-10V or SPI signal for control of constant voltage or constant current lamps, Triac dimmableLED driver or lamps, 0/1-10V dimmable LED driver or SPI digital LED strip.
3. Smart Bright LEDs DMX decoder supports RDM function, and the DMX address can be set on the decoder or set remotely by RDM console.
4. Set the DMX address via a digital tube display /OLED screen key or a 10-pin DIP switch.
Displaying 16 to 23 (of 23 products)

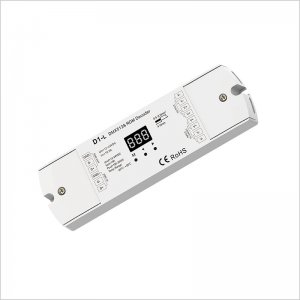

RDM/Stand-alone function/Two PWM frequency/Logarithmic or linear dimming/Numeric display/Multiple protection ● Comply with the DMX512 standard protocols. ● Digital numeric display, set DMX decode start address by buttons. ● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console. ● PWM frequency 2000/500Hz selectable. ● Logarithmic or linear dimming curve selectable. ● Stand-alone dynamic...

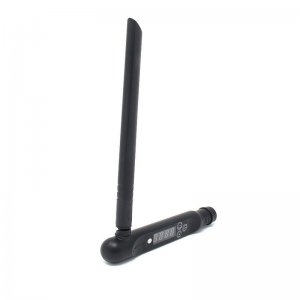

With 80 x DMX channels, this DMX512 wireless transmitter can control up to 16 x zones of five channel (RGBW) Mi-Light light bulbs or Mi-Light LED five channel strip controllers. The Transmitter simply plugs into the 3pin XLR output connector on your DMX lighting desk, power is provided using the included USB to mini jack lead. It is possible to select up to 16 x separate zones and the DMX address from 001 to 512 as required using the buttons and digital display on the side of the...

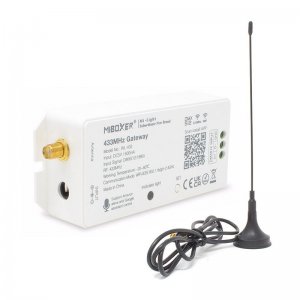

This Mi-Boxer 433MHz Gateway is designed to control your 433MHz lighting products wirelessly either by DMX or from your smartphone using the free Mi-Boxer Application or using voice control through your paired smart speaker such as Amazon Alexa or Google Assistant. Note: A separate DMX controller using standard DMX512 protocols is required for this feature. For control from your smartphone, download the free Mi-Boxer Application, a QR Code to directly link to this through the Apple App...

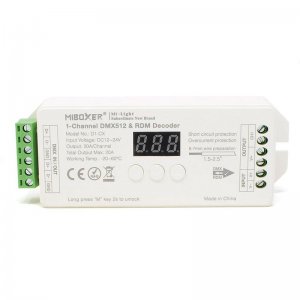

This compact, multi-function single channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication. The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are...

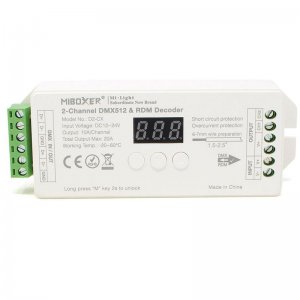

This compact, multi-function Two Channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication. The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are accessed...

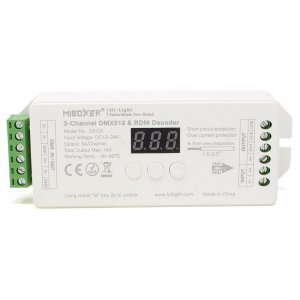

This compact, multi-function Three Channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication. The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are accessed...

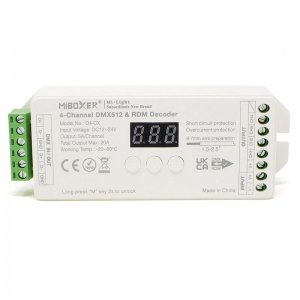

This compact, multi-function Four Channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication. The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are accessed...

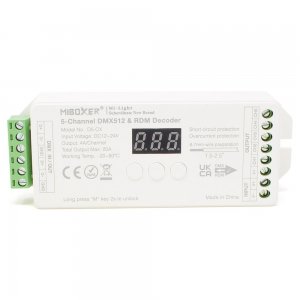

This compact, multi-function Five Channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication. The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are accessed...
Displaying 16 to 23 (of 23 products)
|
