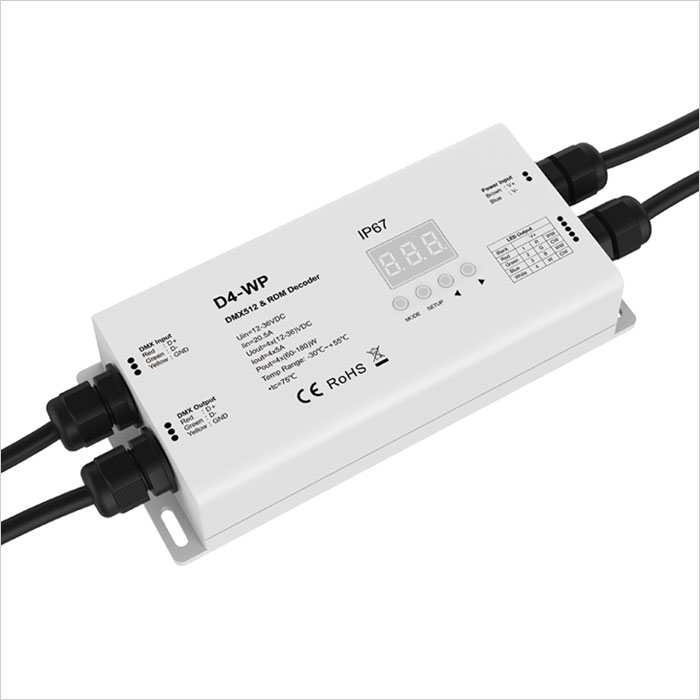

DS series DMX512 Decoder allows LED lights to be connected to and controlled with DMX systems. With a fully waterproof case, the device can be used both indoor or outdoor without the need for a protective enclosure. Digital display with simple buttons make it easy to control LEDs like strip lights or landscape fixtures. Select modes and assign addresses for up to 4 channels, 5 amps per channel, with a maximum power of 60-watts at 12 VDC or 180-watts at 36 VDC.

Pair with a Waterproof LED Strip.

Product Details:
1-4 channel configuration
Wire length on each end: 10.5"
DMX IN and OUT
DMX address selction LED display
60W-180W
12 VDC, 24 VDC, 36 VDC
Rated IP67 for wet locations
RoHs, CE certificate
5 year warranty

Warranties & Certifications

TECHNICAL DETAILS
Amps:  20.5 Amps
Amps per Channel:  5 Amps/CH
Channels:  4 Channels
IP Rating:  Waterproof IP67
Input Connection Type:  Pigtail
Input Voltage Range:  12 VDC, 12-36 VDC, 24 VDC, 36 VDC
Max Output Wattage:  60~180 Watts
Operating Temperature:  -30~+55 °C (-22~+131 °F)
Remote:  DMX
Standards And Certifications:  CE, RoHS Compliant
Volts:  12~36 VDC
Package Weight:  16oz (0.45kg)
Package Dimensions:  7" (18cm) x 4" (10cm) x 3" (8cm)
All specifications are subject to change without notice.
