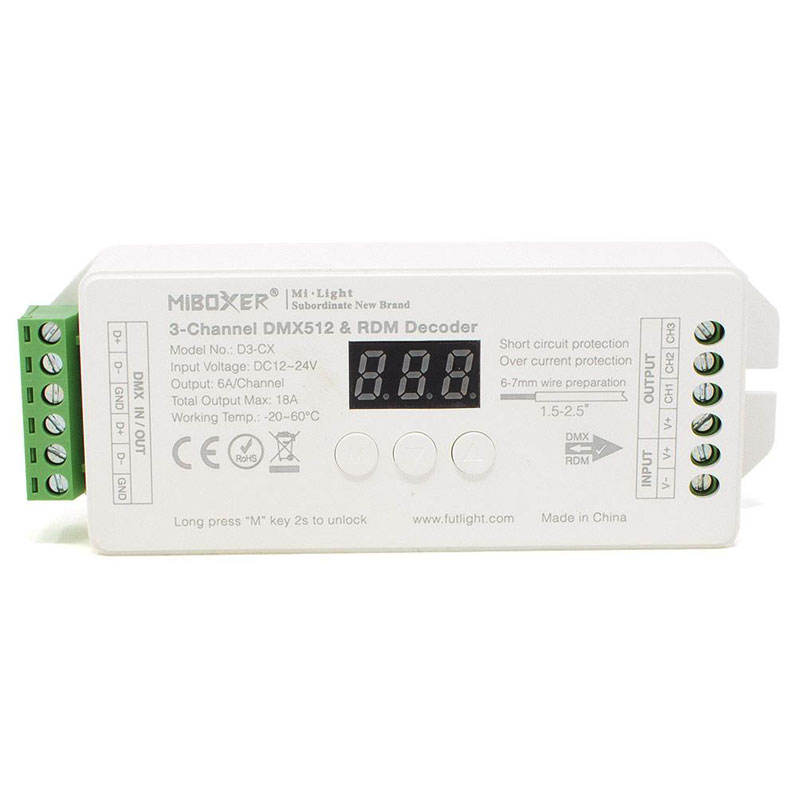

    SBL-D3CX MiBoxer 3 Channel Constant Voltage DMX512 & RDM Decoder

      (7 Reviews) | Write a review
    SKU: SBL-D3CX
    Discontinued
    Starting at: $36.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    This compact, multi-function Three Channel DMX512 Decoder has many professional features including RDM which enables the various settings to be adjusted from an RDM enabled DMX controller using bi-directional communication.
    The DMX address can be quickly set together with various other parameters which include an adjustable PWM frequency of 500Hz or 2000Hz, an adjustable dimming curve (Logarithmic or Linear dimming) and the ability to select smooth or standard dimming, all of which are accessed using the menu buttons and digital display.
    In addition the decoder has various built in safety features including Anti-reverse protection, Short circuit, and Over current protection and when powered on the unit has a self check function to ensure that it is working correctly.  There is also a digital lock incorporated into the decoder to prevent tampering.  This facility can be disabled if required otherwise it activates automatically after eight seconds of inactivity.
    With a maximum load of 18A (6A per channel) this three channel DMX Decoder is ideal for controlling your RGB Colour Changing 12v or 24v LED products using the DMX 512 standard protocols, the decoder takes up three DMX channels.

    Please ensure that you connect a suitable 12v or 24v constant voltage driver to the input on the DMX decoder to suit the load that you are controlling.

    Feature

    1. Constant Voltage DMX Decoder
    2. Compatible with Mi-Light / MiBoxer handsets and wall panels
    3. Smartphone Compatible
    4. 30m signal transmitting and synchronization between receivers
    5. Quick and easy to pair with handsets and wall panels

    Technical Specification
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    12v / 24v DC
    Connectivity:    DMX 512 protocols
    Size:    L130mm x W49mm x H27mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Operation Frequency:    DMX512
    Operating Temp:    -20~60°C
    Total Output:    Max 18A
    Output Max:    6A/Channel
