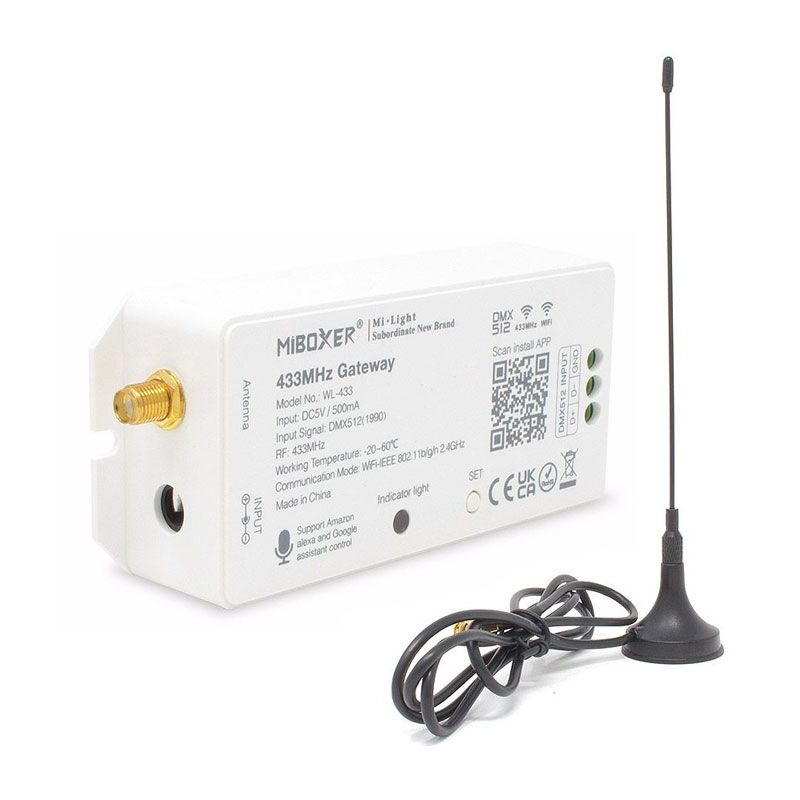

This Mi-Boxer 433MHz Gateway is designed to control your 433MHz lighting products wirelessly either by DMX or from your smartphone using the free Mi-Boxer Application or using voice control through your paired smart speaker such as Amazon Alexa or Google Assistant.
Note: A separate DMX controller using standard DMX512 protocols is required for this feature.
For control from your smartphone, download the free Mi-Boxer Application, a QR Code to directly link to this through the Apple App Store or Google Play can be found on the Data Sheet included with the Gateway.  Once you have downloaded the application and registered you will be able to control all the functions of your 433MHz lighting product from your smartphone.  For voice control, there is an option within the application to add your smart speaker.
Note: Although the range of the wireless gateway is up to 50m from the transmitter and line of sight is not required, walls and other obstructions can reduce this range.

Feature

1. 433MHz WiFi Gateway
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Smartphone Compatible
4. 30m signal transmitting and synchronization between receivers
5. Quick and easy to pair with handsets and wall panels

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Home Automation
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    5v DC
Connectivity:    RF
Size:    L118mm x W48mm x H27mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    LoRa Spread Spectrum
Transmitting Power:    15dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max500mA
