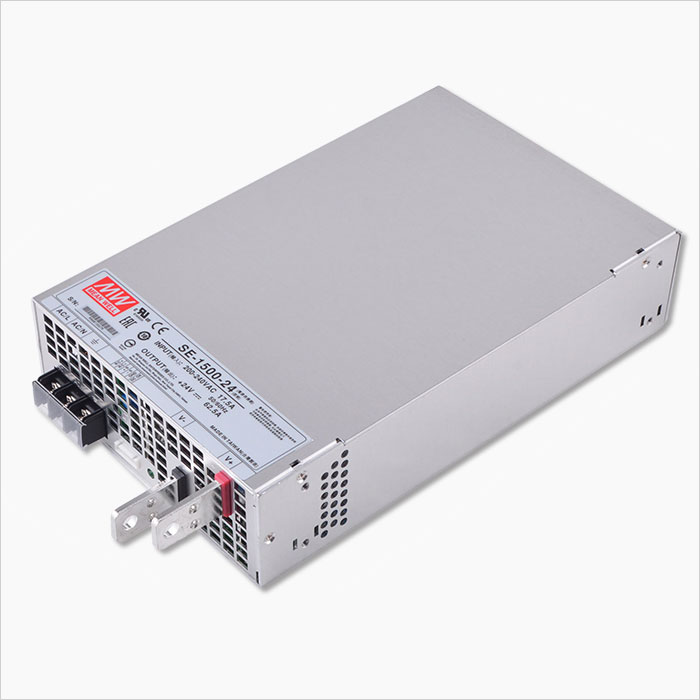

    Mean Well LED Switching Power Supply - SE Series 1500W Enclosed Power Supply - 24V DC

      (8 Reviews) | Write a review
    SKU: SE-1500W-24
    Discontinued
    Starting at: $379.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    Input Voltages: 180 ~ 264 VAC or 254 ~ 370 VDC
    High power models with safety certificate
    Non-PFC, complete protections
    Protections: Short circuit / Overload / Over voltage / Over temperature
    100% full load burn-in test
    LED indicator for power on
    Built-in DC fan
    Low cost, high reliability
    2 years warranty

    Warranties & Certifications


    TECHNICAL DETAILS
    Connection Type:  Screw Terminals
    Dimming Control:  None
    Dimmable:  No
    Input Frequency Range:  47 ~ 63 Hz
    Input Voltage:    180 ~ 264 VAC
    Input Voltage DC:  254 ~ 370 VDC
    IP Rating:  Non-Waterproof
    Output Channels:  1
    Output Rated Current:  62500mA
    Output Voltage DC:  24 VDC
    Built-in PFC Function:    No
    Power Supply Type:  Indoor
    Standards And Certifications:  RoHS Compliant, UL Recognized
    UL Standard Number:  UL 60950-1
    Volts:    24 VDC
    Wattage:  1500 Watts
    Package Weight:  13oz (0.37kg)
    Package Dimensions: 5.55" (14cm) x 2.72" (7cm) x 2.72" (7cm)
    In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
    All specifications are subject to change without notice.
