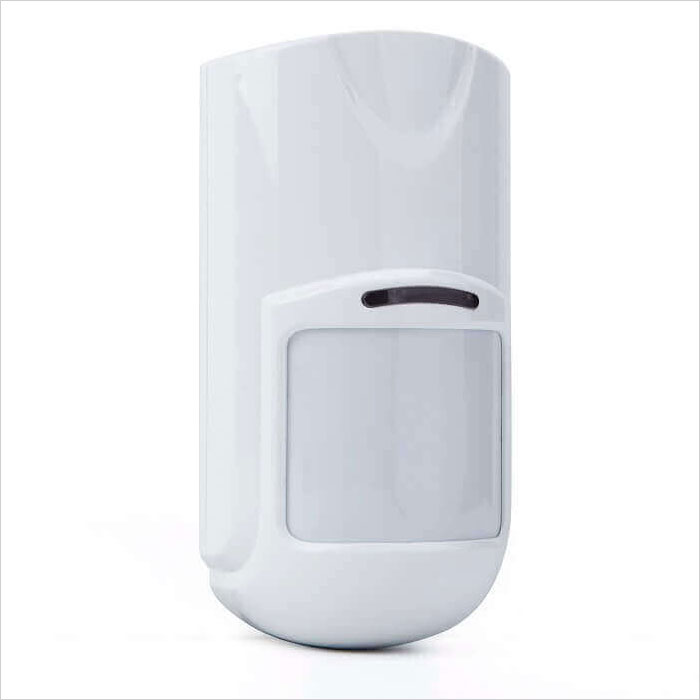

The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc. Here are the features：

1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5

Technical specification
Operating voltage:    DC9V-24V
Current consumption:    ≤30mA
Alarm  indicator:    Green: infrared triggered, Yellow:microwave triggered, Red:Alarm
Tamper output:    NC, contact DC28V 100mA
Alarm output:    NC/NO optional, contact DC28V 100mA
Alarm time:    0.3m/s - 3m/s
Self-testing time:    60s
Microwave antenna  type:    X-Band plane antenna with high frequency GaAs :FET oscillator
Pet immunity:    20kg
Detecting angle:    90°
Detecting distance:    12m

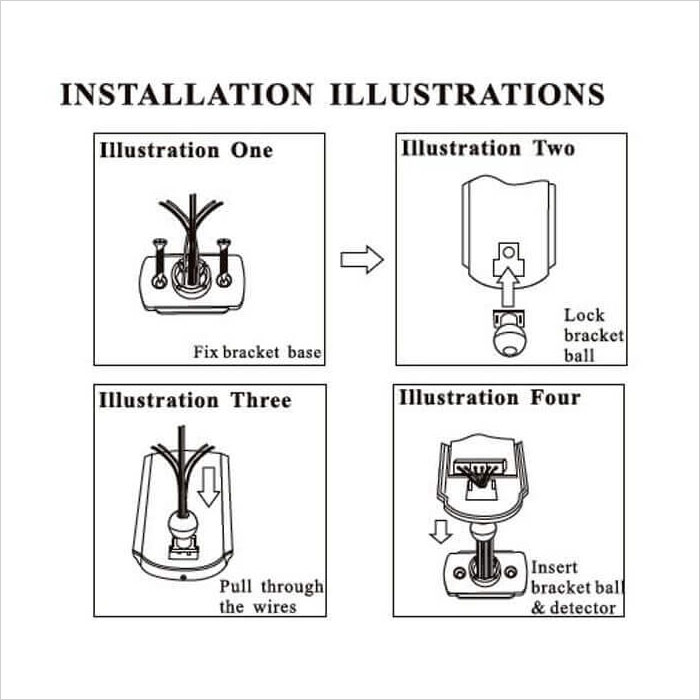

Installation:    Wall or corner mounted
Working environment:    -10℃~+50℃,(≤95%RH No congelation)
Dimension:    123*62*46mm
