    Vollong 3W RGB High Power LED

      (3 Reviews) | Write a review
    SKU: VL-H01xRGB-3W
    Discontinued
    Starting at: $4.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

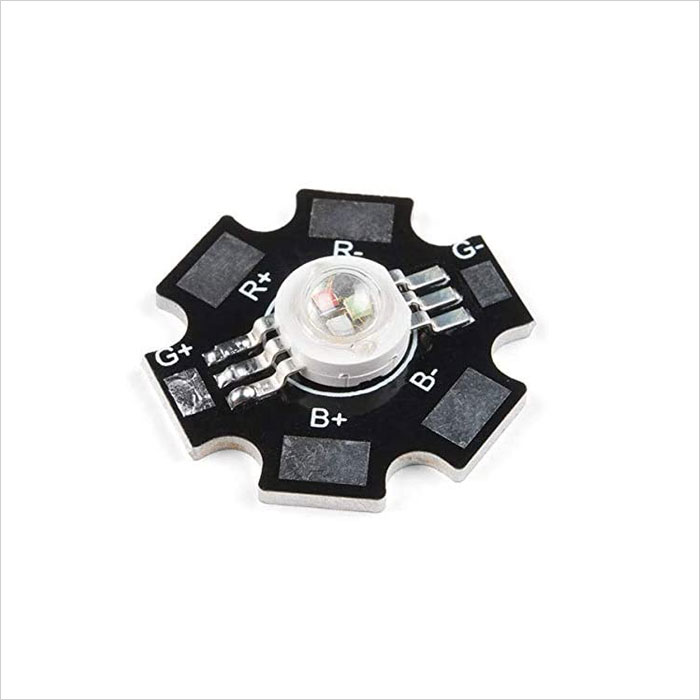

    Vollong 3 Watt high power RGB LED. 465nm/525nm/625nm wavelength, 43,000mcd. with 120 degree viewing angle. See spectral graph for actual wavelength measurement.


    TECHNICAL DETAILS
    Continuous Forward Current:  350 mA, 400 mA
    Forward Voltage:  2.5V, 3.4V
    LED Color:  RGB
    LED Package:  14.5 mm x 7.5 mm
    Lumen:  20 Lumen, 55 Lumen, 60 Lumen
    Maximum Forward Voltage:  2.8V, 3.8V
    Maximum LED Junction Temperature:  120
    Millicandela:  43000mcd
    Operating Temperature:  -35~+50 °C (-31~+122 °F)
    Peak Forward Current:  800mA
    Reverse Voltage:  5V
    Storage Temperature:  -35~+50 °C
    Viewing Angle:    120 degree
    Wavelength:  465 nm, 525 nm, 625 nm
    Package Weight:  0.07oz (0kg)
    Package Dimensions:  0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
    All specifications are subject to change without notice.
