    Vollong 3W White High Power LEDs

      (8 Reviews) | Write a review
    SKU: VL-H01x3W

    Please Choose:



    Discontinued
    Starting at: $2.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

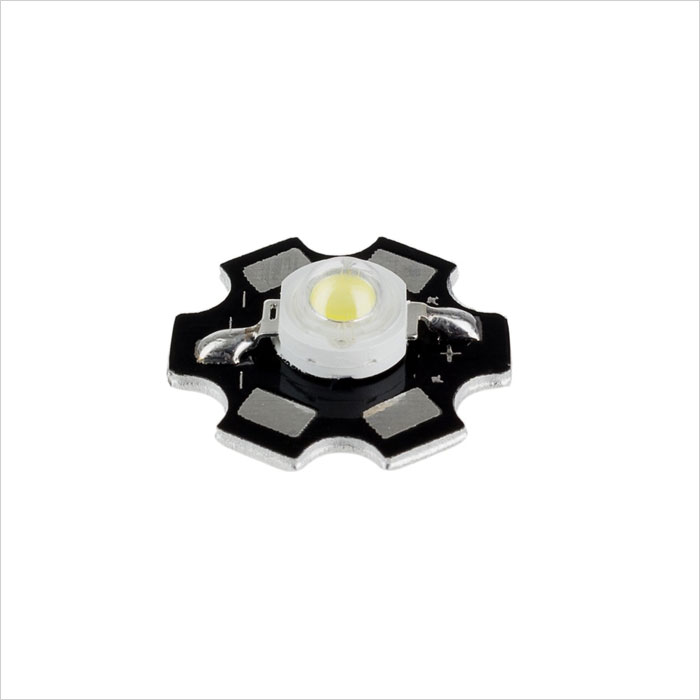

    Vollong 3 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heatsinks. Up to 200 lumen with wide 120 degree viewing angle.


    TECHNICAL DETAILS
    Continuous Forward Current:  750 mA
    Forward Voltage:  3.6V
    LED Package:  14.5 mm x 7.5 mm
    Maximum Forward Voltage:  4V
    Maximum LED Junction Temperature:  120
    Operating Temperature:    -35~+50 °C (-31~+122 °F)
    Peak Forward Current:  1000mA
    Power Dissipation:  3W
    Reverse Current:  10µA
    Reverse Voltage:  5V
    Storage Temperature:  -40~+100 °C
    Thermal Resistance:  12 °C/W
    Total Power Consumption:  3 Watts
    Viewing Angle:    120 degree
    Package Weight:  0.07oz (0kg)
    Package Dimensions:  0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
    All specifications are subject to change without notice.
