Guidelines for LED Lighting

    High Power Component LEDs

    In striving to be your top LED Supplier, Super Light LEDs offers High-Power LED components of various sizes, shapes, colors and brightness. We feature High-Power Surface Mount Device (SMD) LEDs from top brands like Cree, Nichia and Luxeon, as well as discrete 5mm LEDs. Our goal is to supply customers with great LED components at an affordable price, that is why we are always careful to select high quality bins from our top manufacturers, making sure you get the highest Lumen output and the best colors while keeping the forward voltage low, so we can guarantee the best efficacy possible.

    Shop by LEDs Series


    LED Binning Explained
    In the manufacturing of LEDs there is a variation of performance around the average values given in the technical data sheets. This means that in the manufacturing process the color, flux (brightness), and even forward voltage can be different from production run to production run. For this reason, manufacturers bin the LED components for these three areas in order to tell specifically what the characteristics will be and so that applications that need all the same LEDs make sure to purchase diodes that are of the same bin.
    The manufacturers data sheets (linked at the bottom of every LED product page) will show you what the bin number means so you can search for bins that are just right for you. Here at SmartbrightLEDs we try to pick the bins with the highest flux and lowest forward voltage as this will make sure they are the most efficient possible. We always make it a priority to try and provide customers with the same binned LEDs so that there are no variations from diode to diode.
    LED emitters (diodes) are labeled using a three to four digit alphanumeric code (CAT code) showing the bin values for emitters packaged on a single reel. All emitters packaged within a reel are of the same 3-variable bin combination.To the right is an example of the CAT code layout.

    (A) Flux Bin - LED Brightness
    LEDs are the brightest lighting solution out there. In terms of brightness, they are measured in Lumens. A lumen is a scientific unit measuring luminous flux or the total amount of visible light from a source. The amount of light (Lumens) you can get out of a single LED depends on how much current you supply to it, this is measured in milliamps (mA) or amps (A). To the right you can see Lumens in the sense of 25, 40, 60 and 100 watt incandescent bulbs, in-case you want to switch to LEDs while keeping a similar amount of Lumens.

    (B) Color Bin - Correlated Color Temperature & Color Wavelengths

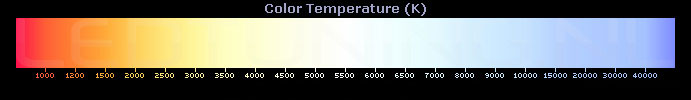

    LEDs allow for a variety of different color whites. Correlated Color Temperature (CCT) is the process of creating different white light at different temperatures. Color temperature is specified in degrees Kelvin (K), which is a temperature scale in which zero occurs at absolute zero and each degree equals one Kelvin. The lower temperatures from 2,500K to 3,500K tend to be a warmer white, like what we are accustomed to for in-home lighting. Neutral White is around 4000K to 4500K whereas the higher temps 5,000K+ are the cool whites.

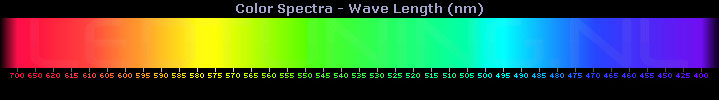

    LEDs are also great in a variety of colors. What changes the colors is the wavelength in nanometers (nm). See our table below for what colors are made from which wavelengths.

    (C) LED Forward Voltage & Powering LEDs
    LEDs are unlike other traditional lights where higher voltages produce brighter light. This is important to know when working with LEDs as most power supplies are made to regulate voltage, not current. Just connecting an LED directly to a standard DC voltage regulated power supply will destroy the diode, as the power supply will provide way more current than what it is rated for as current is not regulated by the power supply.
    This is why you need a constant current LED driver between the DC power supply and your LED. The driver then regulates current to the circuit and is never allowed to exceed the maximum current rating of the LED. All you have to do is find the driver that will provide your LEDs with the current they are best run at, this is easy to find by looking at our product pages. In terms of the power supply, the output voltage needs to be at least a few volts higher than the forward voltage rating of the LED(s) you wish to run.

    Understanding All Types of LEDs
    LEDs are available from us in a large variety of shapes and sizes for a plethora of different applications, sometimes making the selection process a daunting task. To assist in understanding our LED products and how they can be applied to your specific lighting application, we published a comprehensive guide to help you make the switch to LEDs.
