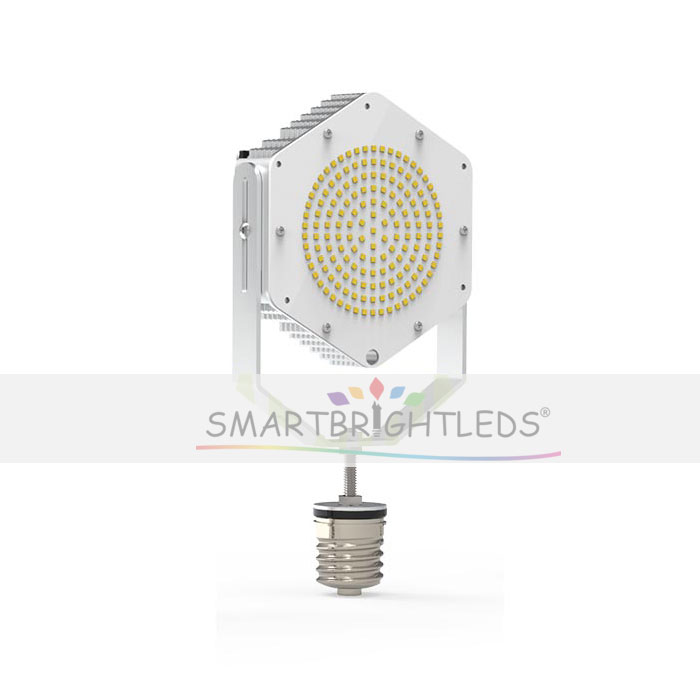

100W LED retrofit kit, 144LM/W high efficiency, ETL cETL DLC CE RoHS certified. Rotatable angle and E40 E39 E27 E26 base allows the retrofit kit to adapt to a wide range of luminaires. Widely used in replacing HID, MH bulbs in Shoebox, Wall pack, Canopy, High Bay, Cobra head Street fixtures.

Feature

• 5 years warranty.
• 0-10V Dimmable Optional.
• Various beam angle of 120 degree.
• Original Lumileds 3030 LEDs which is up to 144Lm/W.
• Arm adjustable with any beam angle.
• With a big Sunon fan(60,000hours).
• Body Temperature:<55 oC  @Ta=25 oC
• With the most excellent quality meanwell driver.
• Available with both 100-300VAC & 347VAC & 480VAC.
• Using aluminum fin heat sink which heat transfer faster than die cast.
• Tiny package and lighter,lower freight cost,more competitive in the market.
• Avaialble for low bay fixture,street pole,canopy,parking lot shoebox,wall pack,high bay fixtures etc.
• ETL DLC CE Lm79 Lm80.

Warranties & Certifications

Specifications
Watt:    100W
Lumen:    14,400 Lumen
Efficiency:     144Lm/W±3%
Chip Brand:    Lumileds 3030
Input Volt:    100-277VAC
Driver:    Sosen Driver SS-150VA-56
CCT:    3000-6000K
Size:    315*149.6mm
Weight:    0.8kg
Fan:    Without
Base:    E40/ E39(mogul)/ E26/ E27(Medium)
Equivalent:     200-250W metal halide / HID lamp Equivalent
Power Factor:    >0.95
Beam Angle:    120 degrees
IP Rating:    IP60
CRI:    >80
Working Tempe / Humidity:    -45 to + 50 Deg C / @Ta=25 Deg C
Warranty:      5 year Warranty
Rated Lifespan:    50,000+ hours
Certified:       ETL DLC CE Lm79 Lm80

View Dimensional Drawings

1.Sunon fan ; 2.Hexagon heat sink; 3.E40 to E27; 4. Aluminum heat sink; 5.Philips SMD 3030;

1.Using aluminum fin heat sink which heat transfer faster than die cast.Tiny packageand lighter,lower freight cost,morecompetitive in the market. Lamp :0.8kg;
2.Using AL1050 aluminum fin heat sink.Can be used in a sealed environment.Thermostatthermal protector;
3.Module Rotatable 360 degree;
