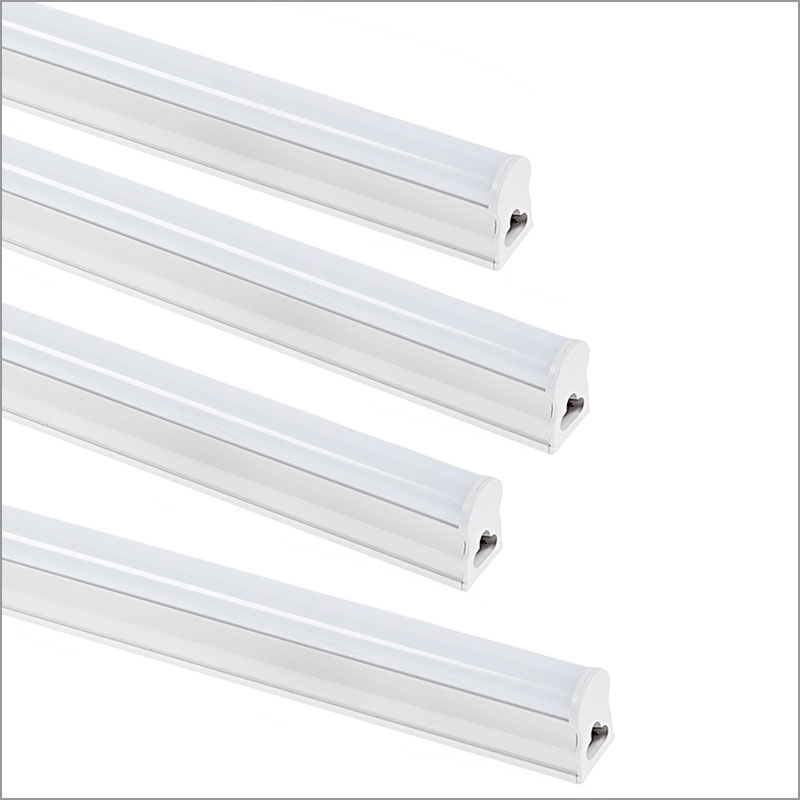

24in (2ft) T5 Integrated LED Light Fixture - Multipurpose Linkable Linear Light - 12~36 VDC
IT5 series Integrated LED Light Fixture comes in multiple lengths that can be linked together to reach desired length, up to 18ft. Designed as a general lighting solution for low-voltage applications, these compact fixtures can be surface mounted in RV or trailer interiors, food trucks, sheds, boat cabins, and more. The round frosted lens diffuses a wide beam of bright, glare-free light. Install one linear light bar on its own, or use included accessories to mount, connect, and power multiple fixtures together.
Product Details:
- Accessories included: 2 mounting brackets, 2 mounting screws, 1 direct connector, 6in pigtail power adapter, 1 endcap
- Extruded aluminum body, polycarbonate lens
- Surface mount
- Available in 4000K or 5000K
- 20 AWG pigtail connector
- Operating Temperature: -13°–113° F (-25°–45° C)
- 120° beam angle
- CRI 80+
- Rated IP20 - suitable for damp locations
- 35000 hours (L70) lifetime
Specifications
Voltage | 12~36 VDC |
Beam Angle | 120° |
CRI | 80+ |
Dimmable | No |
Electrical Connection | 3 Contact Connector, Pigtail |
Environmental Rating | Non-Weatherproof IP20 |
Finish | Silver |
Length | 24in (2ft) |
Linkable | Yes |
Lumen Per Foot | 400 lm/ft |
Rated Lifespan | 35000 Hours |
Material | Aluminum Frame, Polycarbonate Lens |
Certifications/Compliance | CE, RoHS Compliant |
Ambient Operating Temperature | -25~+45 °C (-13~+113 °F) |
All specifications are subject to change without notice.
