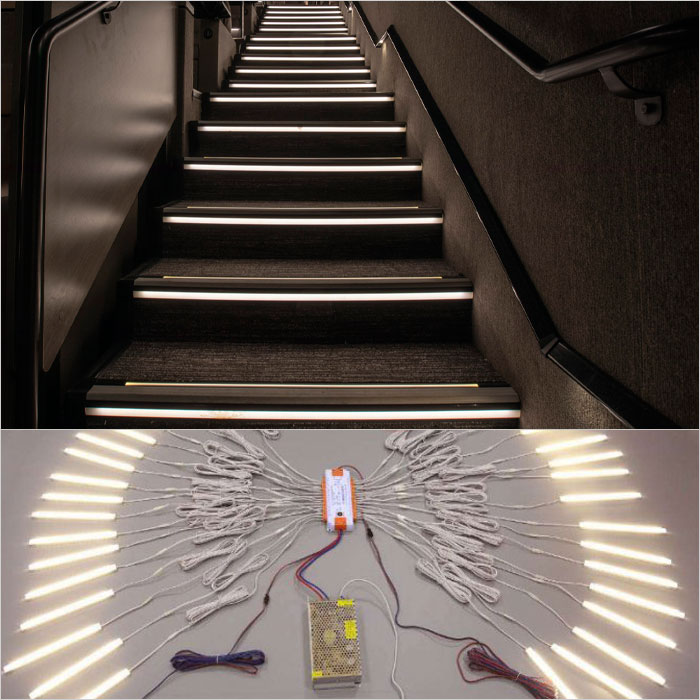

These motion sensor-activated LED stair lights switch on automatically to light up your stairs when you reach the top or bottom step. Each set includes LED strip lighting in protective sleeving, a power supply, advanced motion sensors and a flexible control system, ready for quick and easy installation.

Why Choose superlightleds Stair Lights ?

Flexible options:
• Adaptable solution for different types of stairs
• Sets can be built into new constructions or existing stairs
• Variety of options for quantity and size

Colour choices:
• Customisable options to match the surrounding design
• Light colour options: cold white, warm white, natural white, red, gree or blue
• Profile colour : silver
• Energy efficient LED lights
• 50,000 hours of life expectancy for the LED lights
• Lights are only on when required

Elegant and practical:
• Aesthetic design
• The lighting effect makes the stairs an architectural feature of the space
• Even illumination of the stairs, regardless of the width of the steps.
• Sets are easy to install and use

Smart automation:
• Programmable control unit to adjust the lighting conditions to your preferences and the needs of your environment
• Lights turn on and off automatically when required
• Dimming speed

Linear stair light specifications:
Length: 120 cm/ 90 cm/ 60 cm
Lights: Energy-efficient LED series 3528 diodes
Lifespan: 50,000 hours
Light colour: warm white / cold white / natural white / red / green / blue
Energy consumption: 4.8W/m
Power supply: 100W LED power supply, 12V DC
Cabling Each light comes with 5 metre of twocore cable.

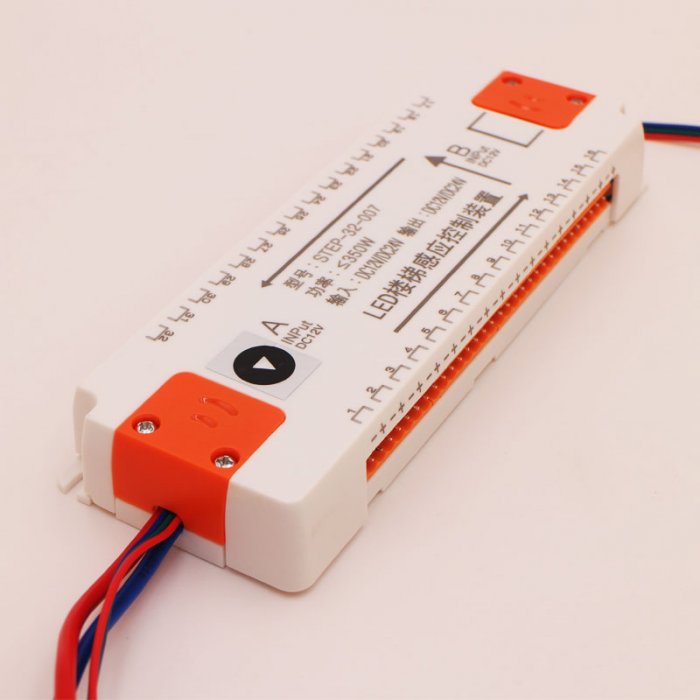

Stair lighting controller Specification:
Max power: 100 W
Output voltage: DC 12 V
Dimensions of control panel:  103 x 87 x 66 mm
Environmental Rating:  Non-Weatherproof
Housing material: Plastic
Number of step control: 6-32 steps

Stair lighting controller Functions:
Automatically switching on and off the lights
Lighting time adjustment between 5-120 seconds
Continuous lighting when motion sensors are turned off
Light intensity adjustment (lighter / darker)
50 cm cable included to allow easy connection to the power source or timer
Suitable for mounting on a 35mm DIN rail
All lights turn on / off simultaneously
Lights turn on / off individually
Lights start turning on at both ends if both motion sensors are triggered

Protective profile:
The light for each step is encased in a protective aluminium profile.  There is a choice of three profiles, each suitable for different installation sites. Profiles can be cut to length using a suitable saw.
Please note that you will be asked for your choice of profile (shape and color) at the checkout stage.
1:Standard
Standard fitting which can be mounted even on finished stairs.
2：Recessed
The profile is hidden in a cut under the step. A popular choice for customers who have not finished their stairs yet.
3:Angular
Mounted in the corner between the stair tread and the riser.

Motion sensors:
Intelligent Stair Lighting motion sensors are fitted at the top and bottom of the staircase and switch the lights on when someone passes them directly. The motion sensors are designed to have a range of 1 m – 1.3 m, though this can depend on factors such as temperature and humidity. Special attention should be paid when positioning the motion sensors to ensure they are not triggered while walking past the stairs.
We offer a choice of two motion sensors (Flush mounted and Surface mounted), suitable for different installations.
Please note that you will be asked for your choice of motion sensor at the checkout stage.

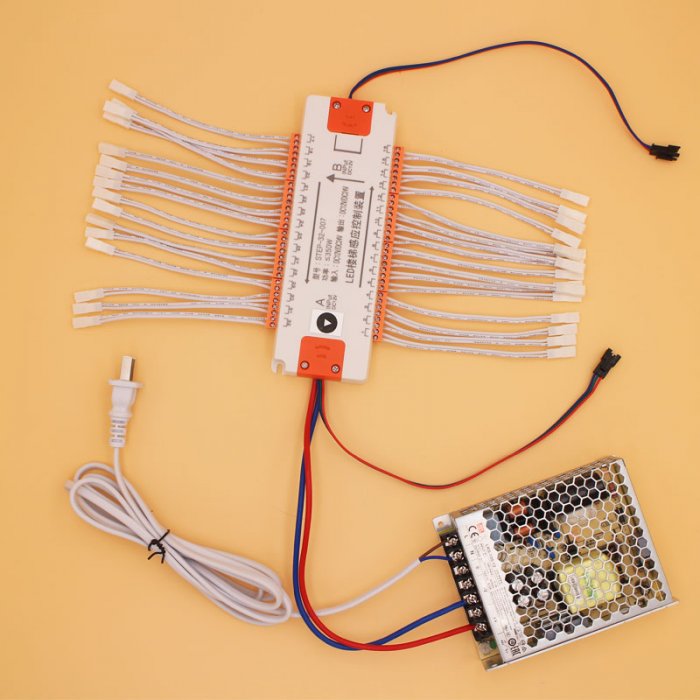

What is included in our Intelligent Stair Lighting kit?
Intelligent stair lighting touchpad control unit
Power supply unit and motion sensors
LED stair lighting strips, two-core wire tails
Aluminium profile and end caps for each light strip with diffuser
