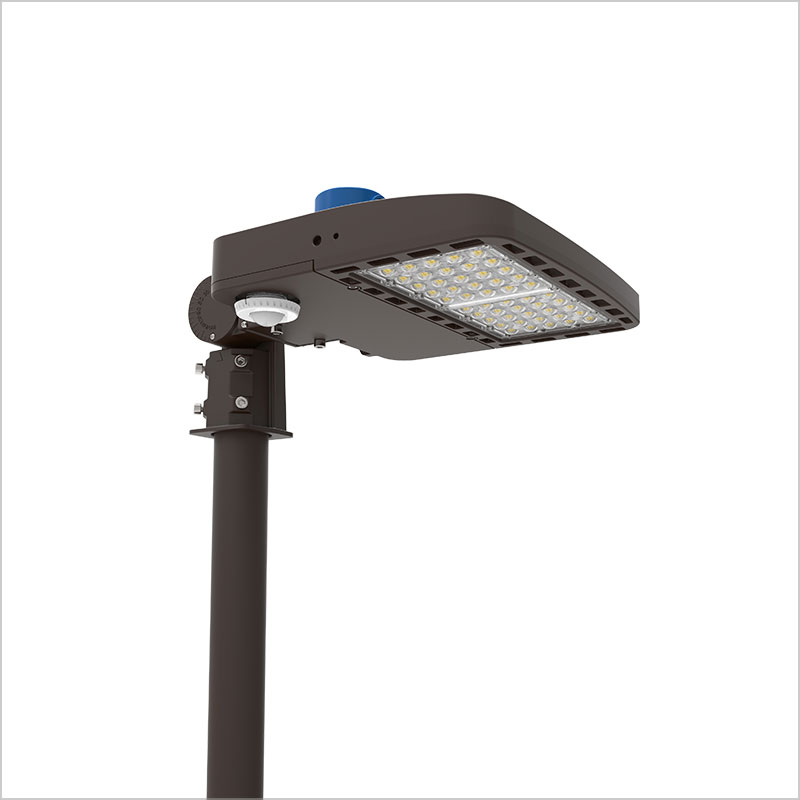

100W LED Parking Lot Light - Area Light - 14,000 Lumens - 250W MH Equivalent - 5700K/5000K/4000K/3500K - Knuckle Slipfitter Mount - Sensing Function
ALD02 series 100W LED Parking Lot Light is an updated, compact solution for traditional cobrahead luminaires and other pole mounted HID fixtures. With Type III-M light distribution, it provides even illumination and maximum application spacing for parking lots, roadways, security, and more. Bronze powder coated aluminum housing will withstand outdoor conditions, with built-in heat sinks for active cooling. Tool-less entry gives easy wire access to meet municipal roadway standards. DLC Premium performance offers better utility rebates than HIDs or other LED luminaries. Mount on poles or posts with included knuckle slipfitter mount and hardware.
Applications
Warehouses,Parking Lots,Security Lighting,Commercial Entryways,Commercial Complexes,Parking Garages,Industrial Facilities,Gas Stations,Commercial Lighting
Specifications
CRI: 80 CRI
Certifications/Compliance: DLC Premium, RoHS Compliant, UL Listed
Color Temperature: 3500K/4000K/5000K/5700K
Dimmable: Yes
Dimming: 1-10V
Efficacy: 140 lm/w
Environmental/IP Rating: Weatherproof IP65
Finish: Brown
Input Connection Type: Pigtail
LED Lifetime: 50000 Hours
LED Type: 2835 SMD
Lens Type: Polycarbonate
Light Distribution: Type III-M
Lumen: 14000 Lumen
Maximum Current Draw: 1.0A (1000mA)
Mount Type: Yoke
Operating Temperature: -40~+55°C (-40~+131 °F)
Operating Voltage Range: 100~240 VAC
Output Equivalency: 250 Watt Metal-Halide
Power Consumption: 100 Watts
Product Materials: Aluminum
TECHNICAL DETAILS
| Model | Watt | Input Voltage | Lumen | CCT | Size | N.W |
|---|---|---|---|---|---|---|
| ALD02-K100W-WEEEE | 100W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 21.7*13*3.6 In | 15.2 kg |
| ALD02-K150W-WEEEE | 150W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 21.7*13*3.6 In | 15.2 kg |
| ALD02-K200W-WEEEE | 200W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 21.7*13*3.6 In | 15.2 kg |
| ALD02-K240W-WEEEE | 240W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 28.4*13*3.6 In | 21 kg |
| ALD02-K300W-WEEEE | 300W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 28.4*13*3.6 In | 24 kg |
| PS:EEE=DNN(No function) / DSN(Sensing function) / DDM(Dimming function) / DDS(Dimming+Sensing function) |
|---|
**All specifications are subject to change without notice.
