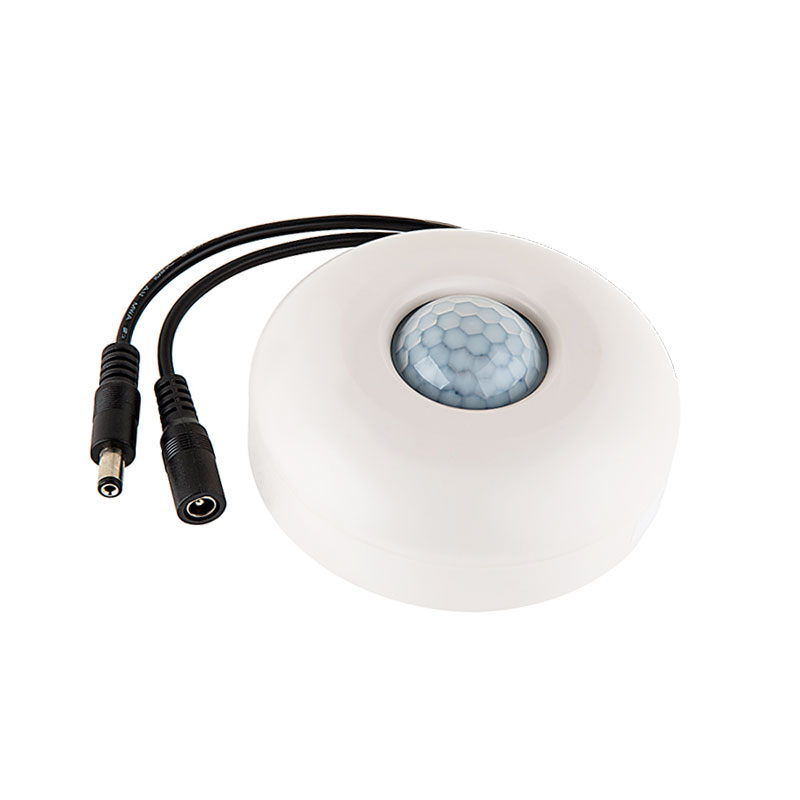

Adjustable PIR switch automatically activates connected 12VDC LED lights when human motion is detected. Adjustable sensitivity and light-on time. Can be set to remain on for any period of time between 30 seconds and 9 minutes. Motion detection range is within 7 meters and 160 degrees from center of PIR sensor. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Single channel - 5 Amp maximum load. 12VDC operation.

Features
Sensitive passive infrared motion sensor that will activate our 12 Volt LED lights only when a thermal difference is detected from 15 feet, ex. people or animals passing by
Light shuts off automatically after no motion is detected for the manually set time (30 seconds to 9 minutes)
Input/Output Voltage: 12VDC
Output: 1CH Male 5.5 barrel connector
Max Load: 5 Amps
Output Power: 60W
Operating Temp: -10°C ~ +50°C

TECHNICAL DETAILS
Amps Per Channel:    5 Amps/CH
Channels:    1 Channel
IP Rating:    Non-Waterproof
Input Connection Type:    Barrel Connector
Input Voltage DC:    12 VDC
Operating Temperature:    -10~+50 °C (14~+122 °F)
Standards And Certifications:    RoHS Compliant
Total Amps:    5 Amps
Type:    CPS Barrel Connector, PIR Motion Sensor
Volts:    12 VDC
Package Weight: 4.6oz (0.13kg)
Package Dimensions: 4" (10cm) x 3.88" (10cm) x 2.26" (6cm)
All specifications are subject to change without notice.
