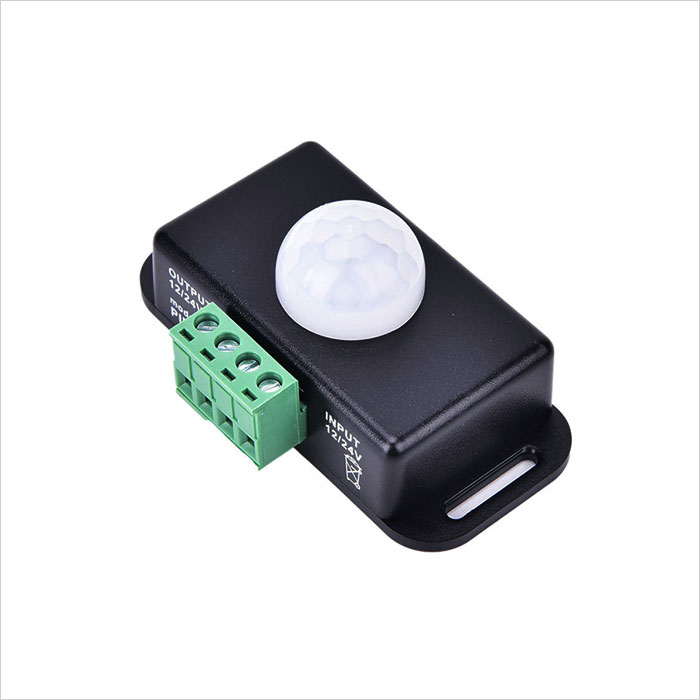

This Mini PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for 1, 3, 5, 8, or 10 minutes. Motion detection range is within 8 meters (26') of the PIR sensor. The single-channel sensor has a 6-Amp maximum load and operates within a 12-24 VDC range. Price for each.

Features:
* Infrared detection controller, adopt infrared detection way to control load switch
* You can install the human body sensors in the appropriate environment according to actual needs
* LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function
* The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased
* PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet
* The field of view of the PIR Dome Lens is 60 degrees nominal
* The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load

TECHNICAL DETAILS
Amps:  6 Amps
Amps Per Channel:  6 Amps/CH
Channels:  1 Channel
Connection Type:  Screw Terminals
IP Rating:  Non-Waterproof
Input Voltage DC:  12 ~ 24 VDC
Special Features:  Motion Sensor
Volts:    12-24 VDC
Package Weight:  1.94oz (0.05kg)
Package Dimensions:  4.1" (10cm) x 2.01" (5cm) x 2.01" (5cm)
