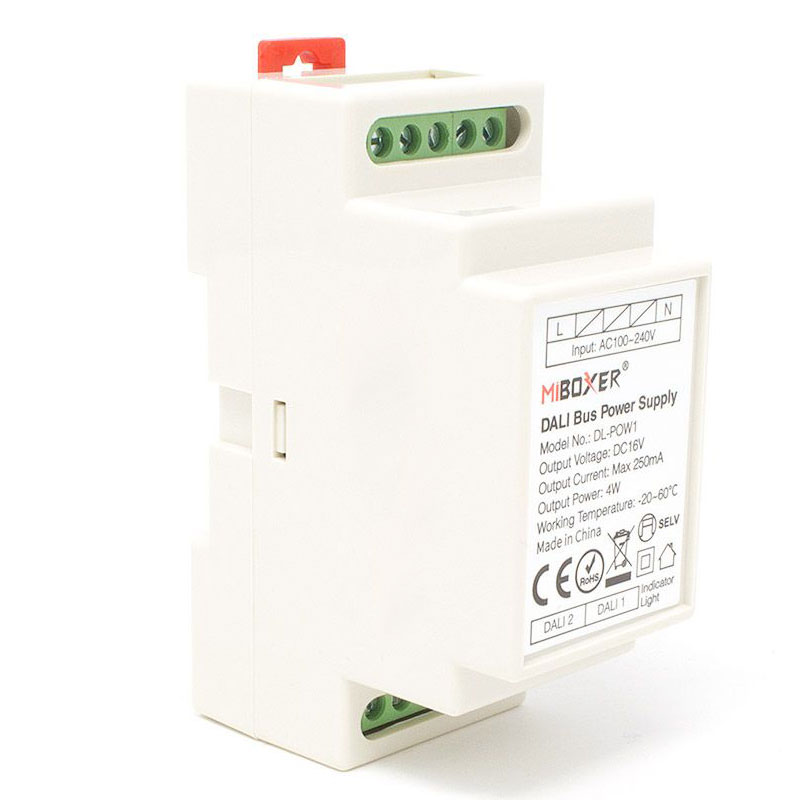

When setting up a DALI control system you will need to run a two core cable around all the DALI devices in the system, this is called the DALI BUS.  The DALI BUS requires a power supply of 16v DC to operator and the DLPOW1 is the perfect product to use for this purpose.

This compact unit measuring just 92.5mm x 36mm x 59mm can be mounted onto a standard 35mm DIN Rail (Third party product purchased separately).
Once mounted onto the DIN rail simply connect your AC main supply (100v - 240v) and connect he DALI BUS cable to the output side and you are ready to go.

Feature

1. DALI Bus Power Supply
2. 4W
3. Compatible with Mi-Light / MiBoxer handsets and wall panels
4. Compatible with Mi-Light / MiBoxer Lighting Solutions

Technical Specification

Manufacturer：    Mi-Light / MiBoxer
Product Type：    Power Supplies
IP Rating：    IP20 Non-Waterproof
Guarantee Period    ：5 Years
Current：    115Vac/≤0.09A, 230Vac/≤0.05A
Input Voltage：    100v - 240v AC
Output Voltage：    16v DC
Connectivity：    DALI protocols
Size：    L92.5mm x W36mm x H59mm
Power Consumption:    4w
Dimmable:    No
Modulation Method：    DALI
Operating Temp：    -20~60°C
Total Output：    250mA Max
