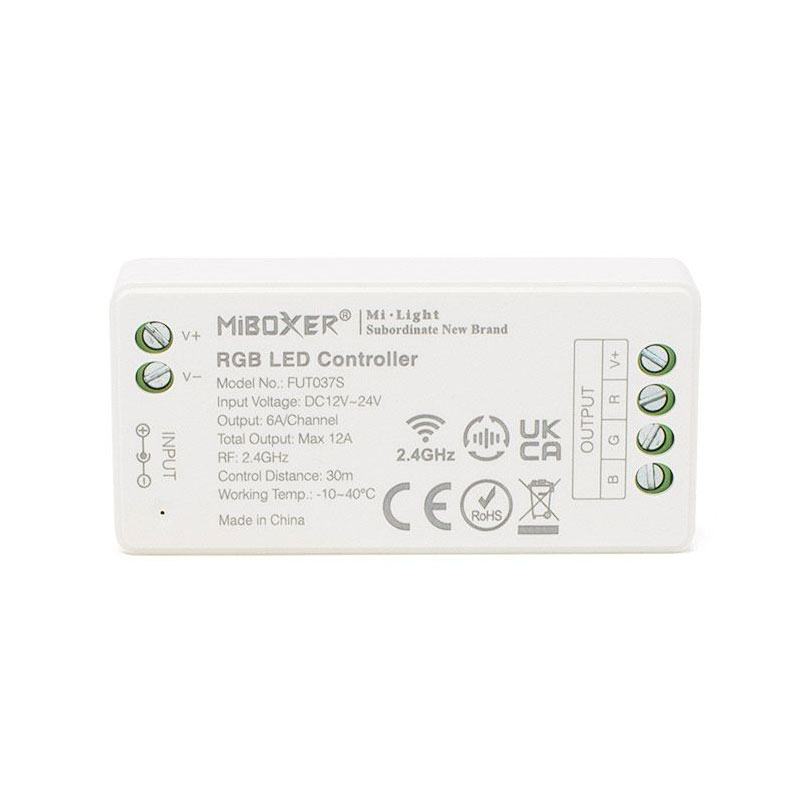

This Wireless Three Channel RF Receiver from Mi-Light is compatible with 2.4GHz RF controllers and will enable you to control your low voltage (12v or 24v) RGB colour changing LED lighting products.  The maximum load of the three channels on this unit is 12A.The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.  It is also possible to select from two dynamic colour changing modes when the built in programs are selected on the handset. (see the two dynamic mode setting on the data sheet).  This unit also has an adjustable PWM frequency of either 500Hz or 8KHz.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).

Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature

1. 2.4GHz
2. For RGB LEDs
3. Compatible with Mi-Light / MiBoxer handsets and wall panels
4. Smartphone Compatible
5. 30m signal transmiting and synchronization between receivers
6. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    12v / 24v DC
Connectivity:    RF
Size:    L74.5 x W36 x H17mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max12A
Output Max:    6A/Channel
Smart Synchronisation:    Version 2.0
