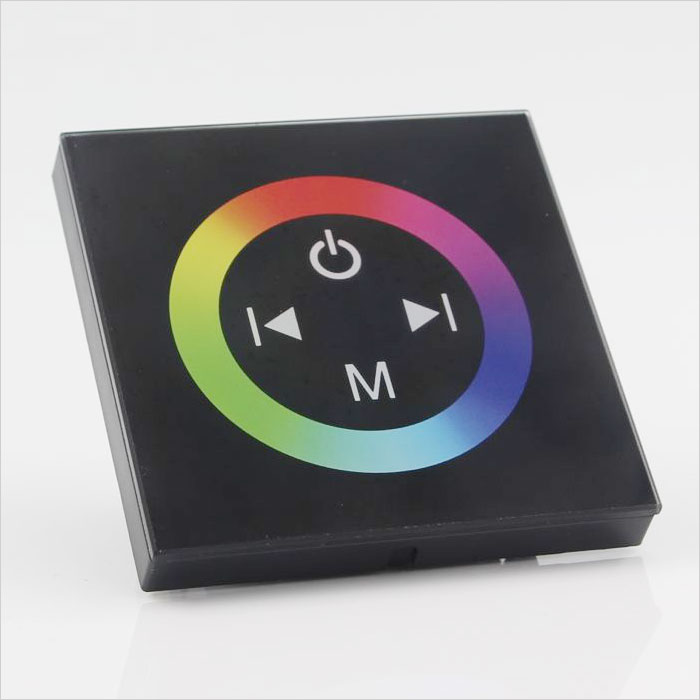

This touch controller set is a quick and easy way to control a bunch of our 12V analog RGB LED strip. The box part contains power driver circuitry and a capacitive touch interface. By wiring the analog strip to the box you can easily adjust the color with the touch wheel-- perfect for mounting on the wall.
The box has a few 'programs' built in, such as rainbow fading and a really obnoxious colorful blinking effect. However, you'll probably end up being very happy with the basic control system that the dial allows. You can turn it on or off by pressing the power button, change through programmable modes, and select the color using the scrolling color wheel. The controller remembers what the last setting is/was when power is lost.

Warranties & Certifications

Functions:
# ON/OFF button
# "M": Mode selection and switch button
# Left button: increase(brightness or speed) one level at a time
# Right button: decrease (brightness or speed)one level at a time
# Rainbow Color Ring: immediate color selection or gradual color change

TECHNICAL DETAILS
Working temperature: -20 to 60°C
Control Box Dimensions: 86mm x 86mm x 37mm
Strip power voltage: 12-24VDC
3 Channel output, 4 Amps per channel (12 Amps total)
For common anode LED strips
100 brightness levels
64 Color selectable wheel
Working with RGB multi-color LED strip light
