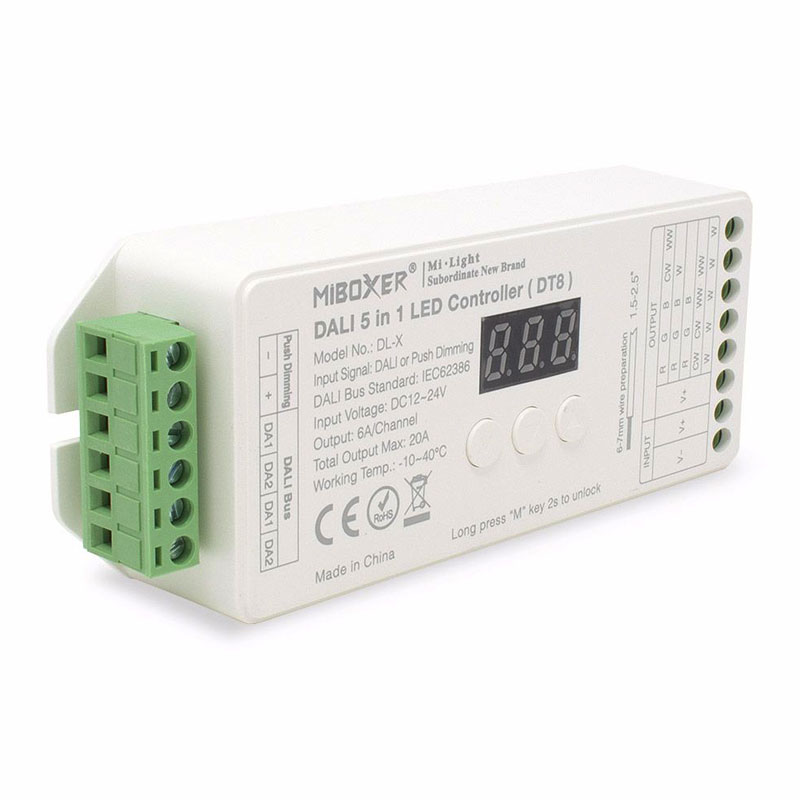

The Mi-Boxer DLX is a compact "Five-in-One" DALI / PWM controller supporting the following DALI protocols (IEC62386-102.207.209): DALI DT8, Tc and XY Coordinates.  Simply set the unit to the correct mode using the buttons and the on board digital display to control single colour, dual white (CCT), tri-colour (RGB), quad-colour (RGBW) and RGBW+CCT 12v or 24v LED products.  DALI addresses and groups can also be set and the dimming curve can be set to either a Linear or Logarithmic value with standard or smooth dimming adjustment.  The controller will automatically lock after 30seconds if no buttons are pressed preventing accidental adjustment, to unlock simply press and hold the "M" button for 2 seconds.

There are additional connections for a "Push Dimming" function, simply connect a momentary switch to these terminals and you can switch or dim your lighting as required.
Each channel has a limit of 6A however the overall load over all five channels must not exceed 20A.  The controller has a short circuit, over current protection and recovery function.

Feature

1. DALI (DT8) Receiver
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Supports DALI standard protocol
4. Supports single colour, colour temperature, RGB, RGBW and RGB+CCT
5. Quick and easy to pair with handsets and wall panels

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage:    12v / 24v DC
Connectivity:    DALI protocols
Size:    L130mm x W49mm x H27mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    DALI Signal or Push Dimming
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max20A
Output Max:    6A/Channel
