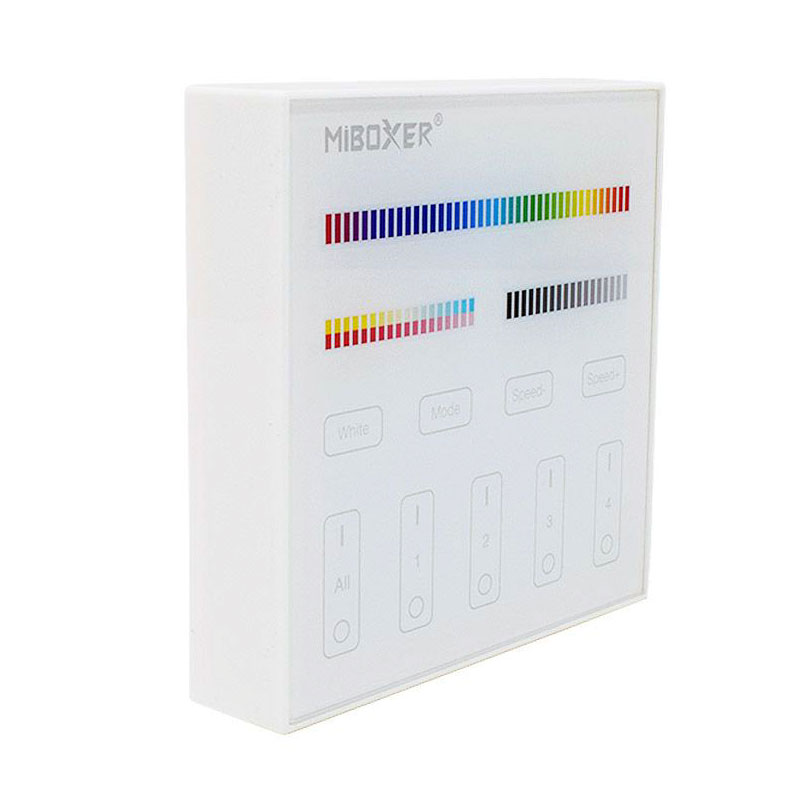

With the capacity to control up to four zones of RGBW+CCT colour changing / colour temperature adjustable LED lighting together or individually, this wall panel features a toughened glass front with touch sensitive colour selection, colour temperature / colour saturation and dimming slider controls.  There is master power On/Off and individual power On/Off buttons for each zone together with an instant "White" select button to switch your lighting to white light and also a number of in-built programs such as colour fade and colour pulse that can be toggled using the mode button, the program run speed can be adjusted as required.  All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
As an unlimited number of receivers / lights can be paired to each zone on the wall panel, it is possible to control multiple products in each of the four zones.  Simply pair each product to your chosen zone and to operate individually, switch on the zone with the appropriate button, select the required colour, colour temperature and brightness level using the touch slider controls. A master On/Off button will switch all the zones On/Off together.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature:

1. Colour slider
2. CCT / Saturation touch slider
3. Dimming slider
4. 4 zones
5. Optional sound on button press
6. Built-in programs
7. Quick and easy to pair with receivers
8. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    RF
Size:    L86 x W86 x H16mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    -10 to 40ºC
