Rigid RGB LED Light Bar w/ High Power 3-Chip SMD LEDs - 244 lm/ft

Rigid RGB LED Light Bar w/ High Power 3-Chip SMD LEDs - 244 lm/ft

(7 Reviews) | Write a review

SKU: RLBN-RGB30SMDx3

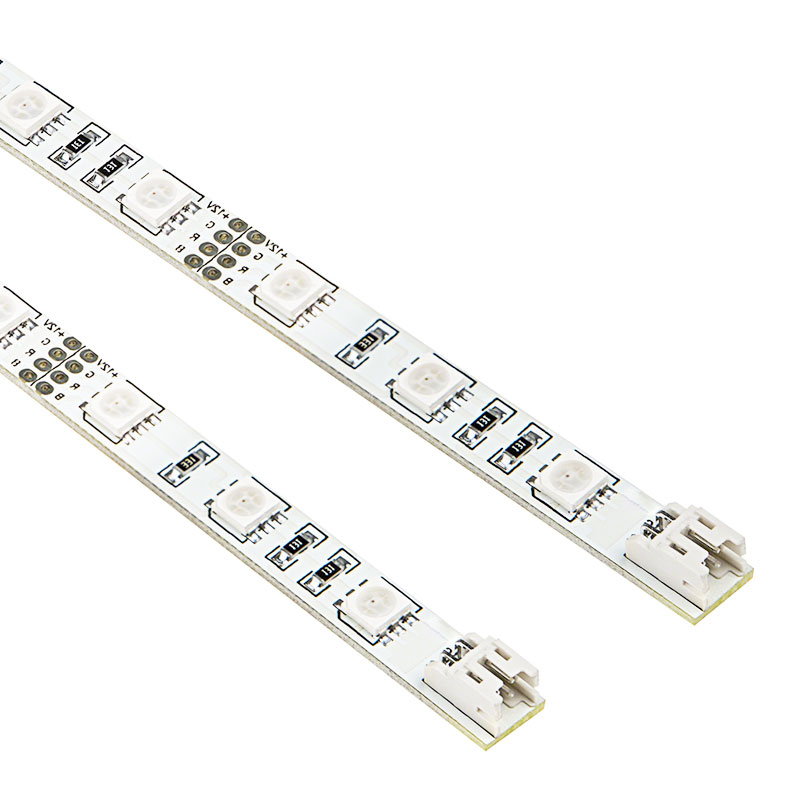

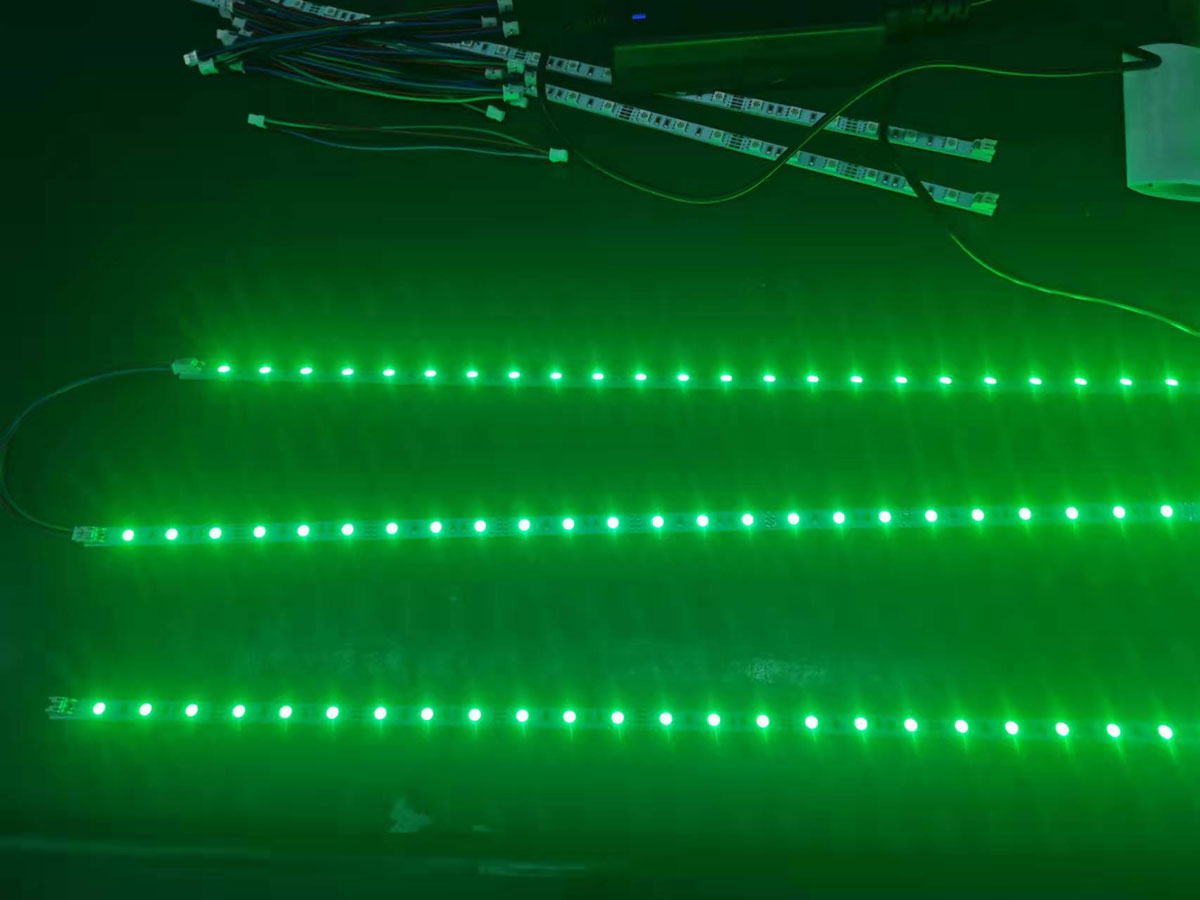

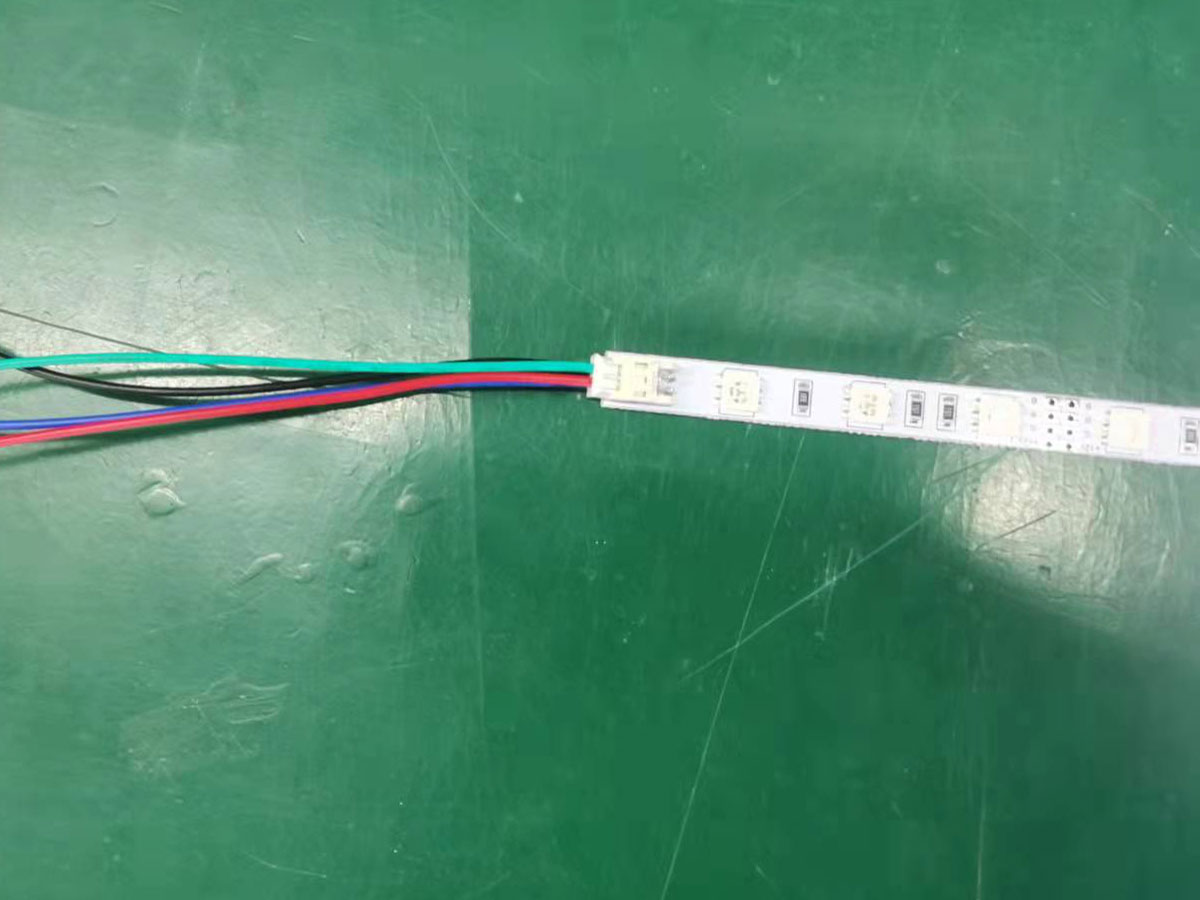

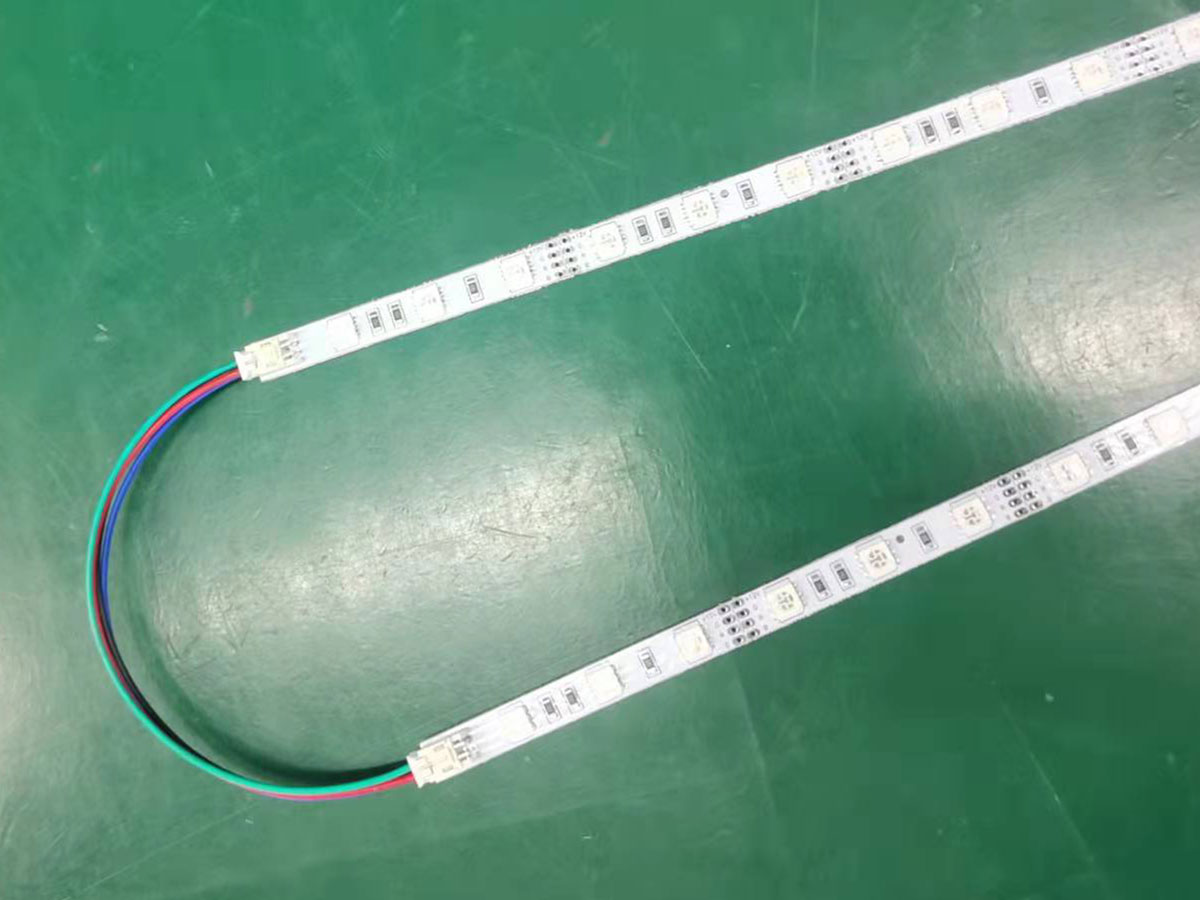

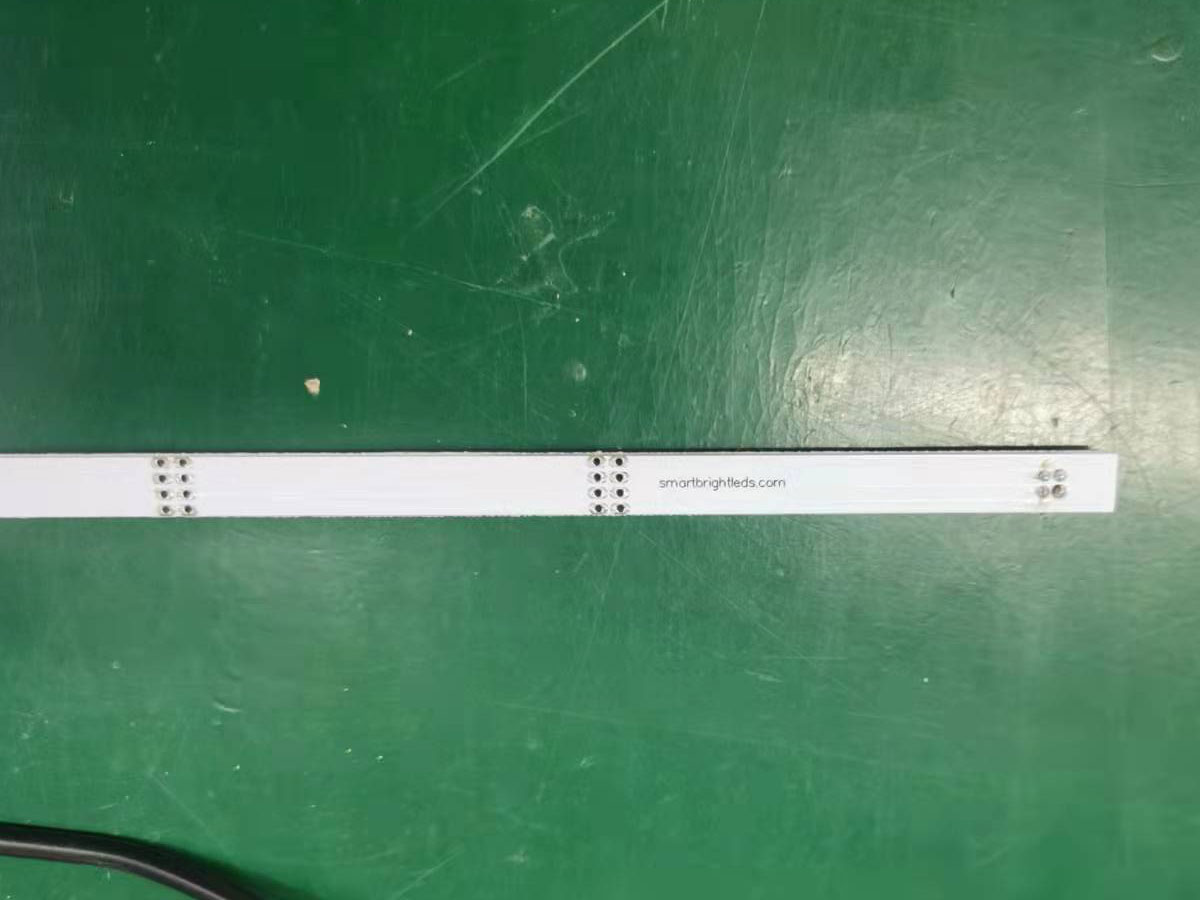

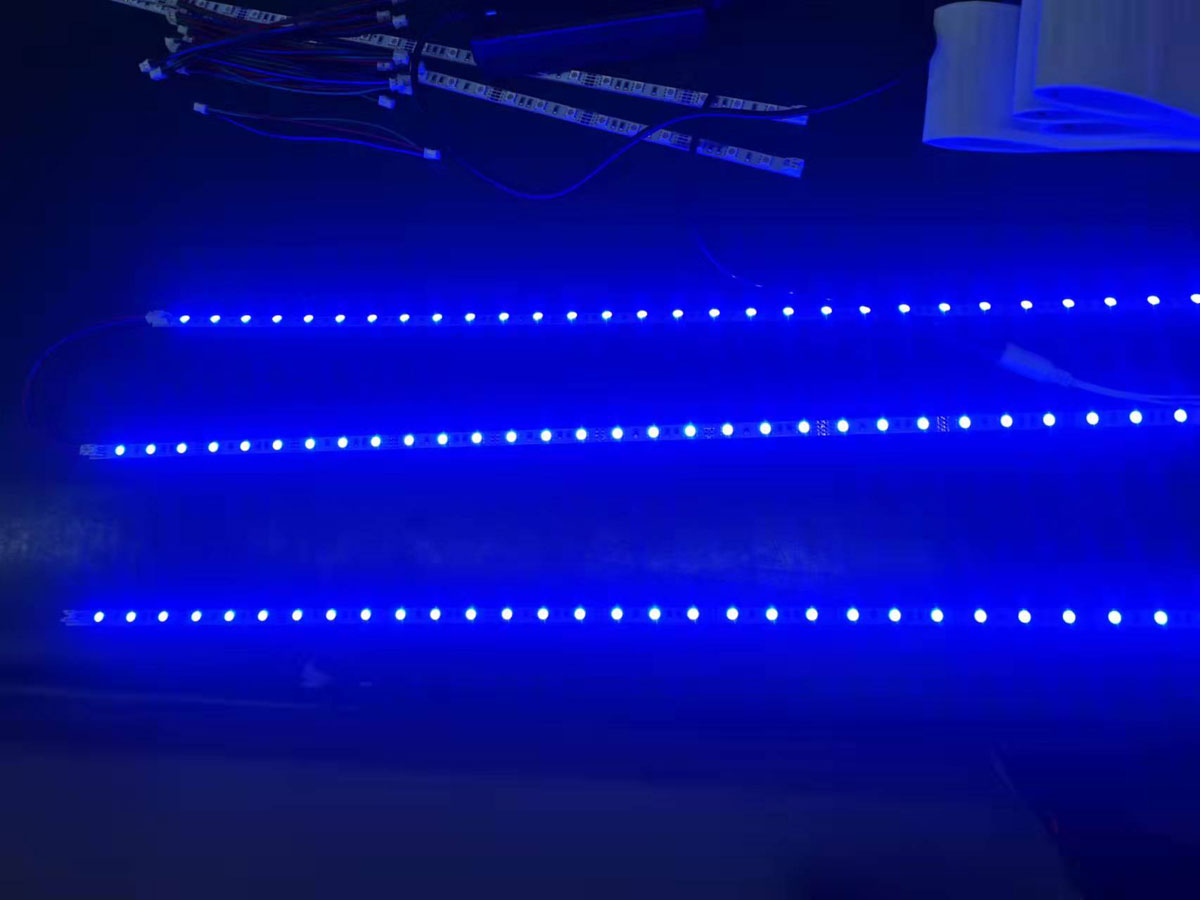

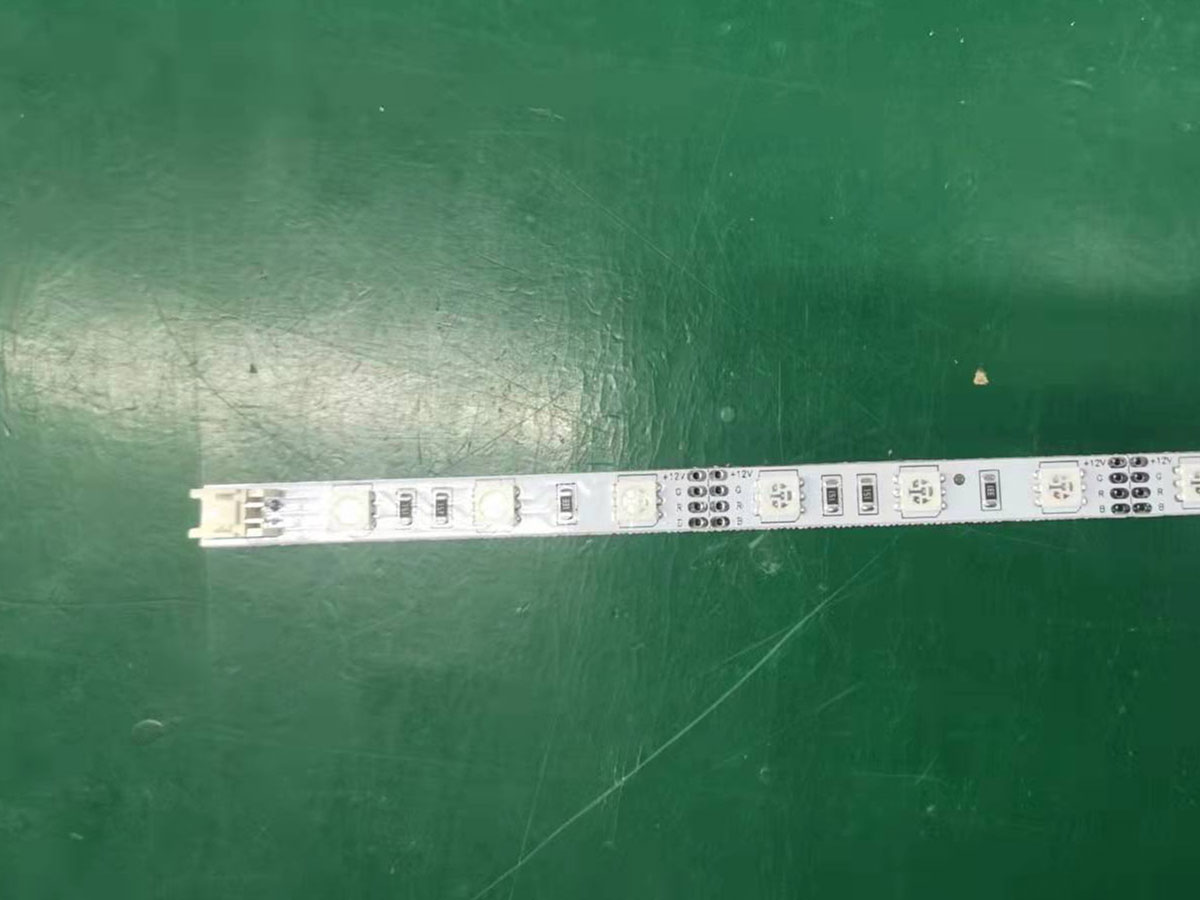

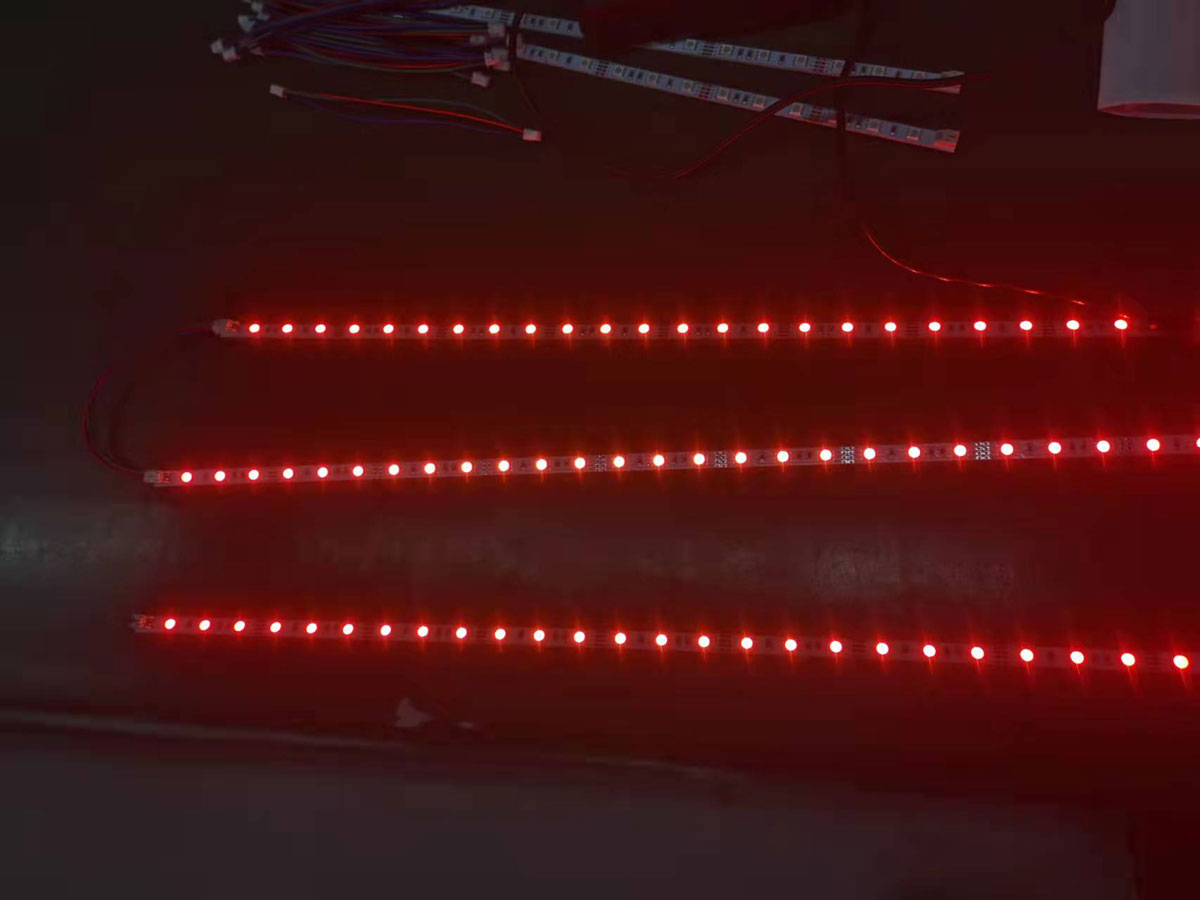

Rigid linear RGB LED light bars are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or other indoor applications where space is limited. This dimmable 1-7/8' light bar uses 5050 SMD RGB LEDs to emit colorful illumination. Use a compatible RGB controller for color selection and color-changing modes. The bar has a separate RGB power input and a common anode female socket. Easily join up to 10 fixtures with compatible interconnect cables (sold separately). Wire must run back to the power source every 10 meters to avoid voltage drop. The non-weatherproof light fixtures have 12 VDC operation and can be cut into 3-LED segments.

Warranties & Certifications

Application & Use
LED Backlights, Accent Lighting, Off Grid Lighting, Coves, Under-Cabinets, Display Case, Trade Shows

TECHNICAL DETAILS

Voltage	12V DC
LED Color	RGB
Comparable Wattage	45-50 Watt Incandescent
Dimmable	Yes
Type	Rigid Light Bars
Strip Width	8mm (0.31in)
IP Rating	Non-Weatherproof
Total Length	23in (1.88ft)
Input Connection Type	RLBN Female
Number of LEDs in Unit	30 LEDs
Rated Lifespan	50,000 hours
Wattage per Foot	3 Watts
Wavelength	470 nm/525 nm/626 nm
LEDs per Segment	3
LED Type	5050 SMD
Beam Angle	120 degree
Package Dimensions	22.5" (57cm) x 0.22" (1cm) x 0.22" (1cm)
Total Power Consumption	5 Watts
Lumen Per Foot	244 lm/ft (800 lm/m)
Standards And Certifications	CE/FCC/ISA Approved/ROHS Compliant

**All specifications are subject to change without notice.
