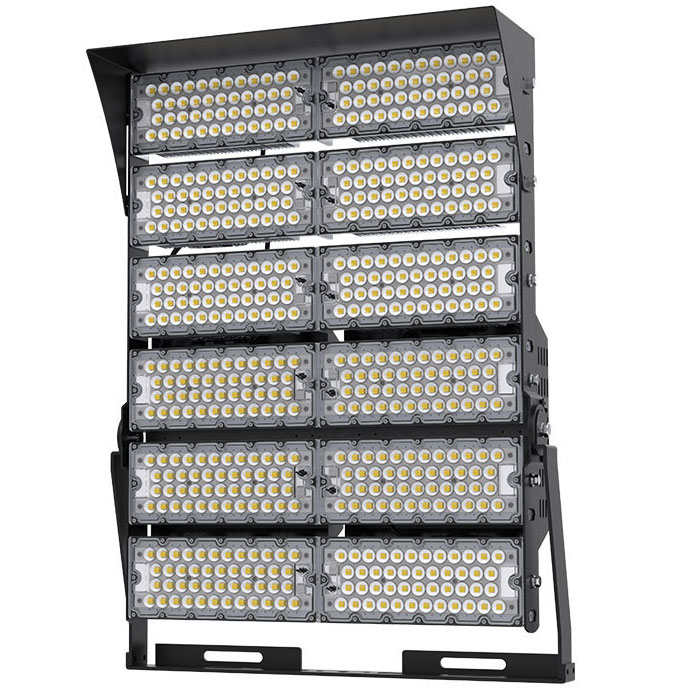

    1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting

      (9 Reviews) | Write a review
    SKU: SBLHM-1440W-xLV

    Please Choose:







    Discontinued
    Starting at: $1,469.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the US authoritative ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it adopts TUV certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.

    Warranties & Certifications

    Features
    IP65 rated LED floodlight
    Rotatable modules offering maximum customisation
    Heavy duty stirrup mounting bracket
    Multiple optics available
    Can be installed as a floodlight or high bay
    With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 160Lm/W.
    Protractor scale for easier aiming
    50,000-hour operating life means years of maintenancefree operation.
    Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
    Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


    Specifications
    Watt:    1440W
    Lumen:    223,200
    Efficiency:    155Lm/W±3%
    Driver:    Meanwell Driver 6*ELG-240-48A
    Input Volt:    100-277VAC
    Chip Brand:    Lumileds 5050
    Color Temp:    3000K / 4000K / 5000K / 5700K
    Weight:    25kg
    Size:    860*650*132mm
    Beam Angle:    10 /20/ 40 / 60 / 90/ 140*100 degree
    Modules:    Module rotatable up & down 15 degree
    Dimming:    Dimmable/ Non-dimmable
    Wind rating:    51.0-56.0m/s
    Lifespan:    >50,000 Hours
    IP Rating:    IP65 & IK08
    Certficates:    ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test


    View Dimensional Drawings

    Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high mast lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.

    Adjustable angle
    1.Rotatable module
    2.Replaceable optical lens
    3.Protractor scale for easier aiming
    4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation
    5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

    Applications
    Applied in large sports field lighting, golf and tennis court,racetrack,
    badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
