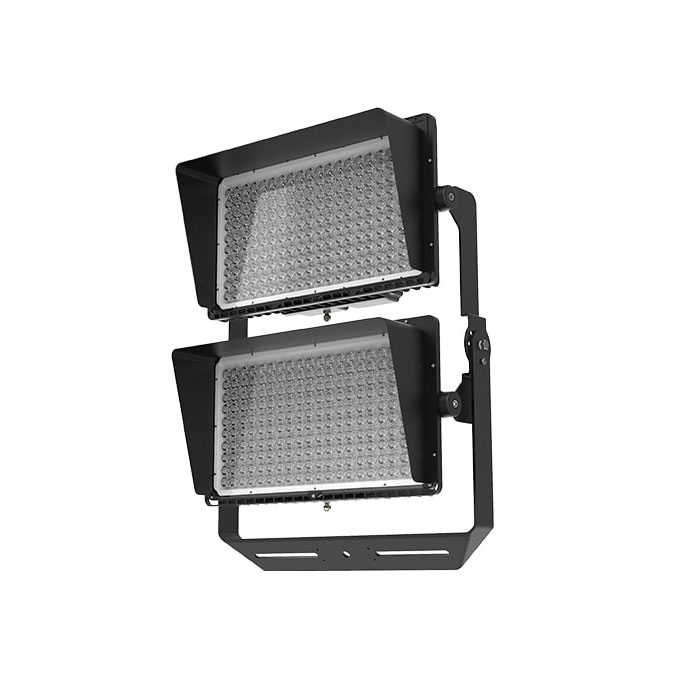

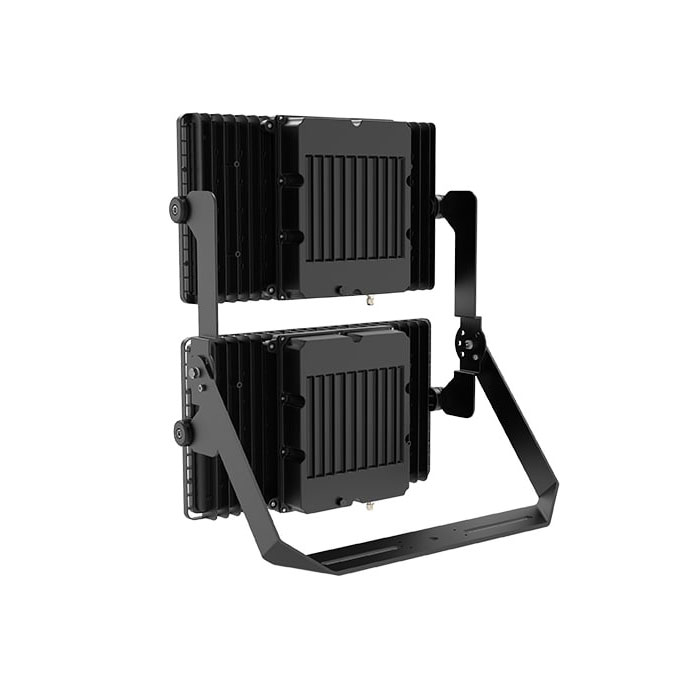

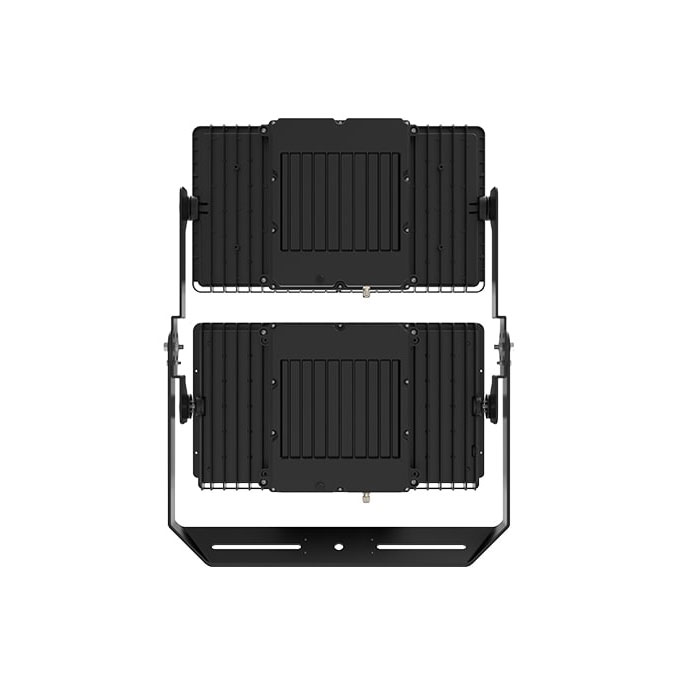

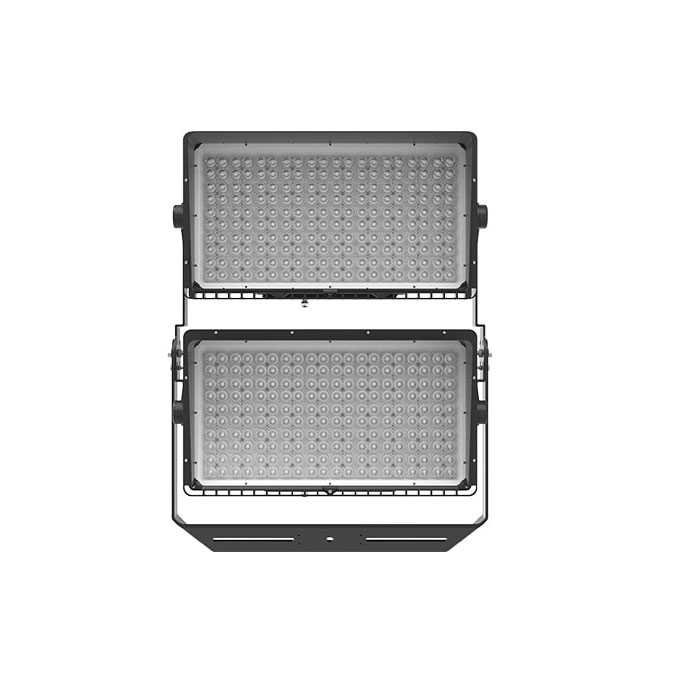

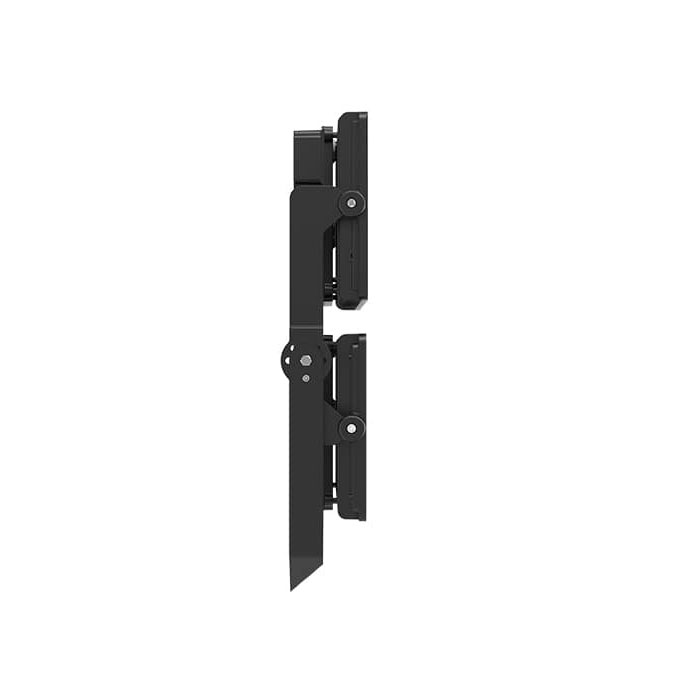

Our 800W high power high efficiency LED Stadium flood Light is designed to replace 1800W-2000W metal halides and HPS Stadium flood lamps. We have authoritative certifications such as TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting. The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.

Warranties & Certifications

Specifications
Watt：    800W
Lumen：    148,000 Lumen
Efficiency：    180Lm/W±3%
Driver：    Meanwell Driver 4*ELG-240-48A
Input Volt：    100-277VAC
Chip Brand：    Lumileds 5050
CCT：    4000K, 5000K
Weight：    32kg
Size：    869*678*152mm
Color Rendering Index：    Ra70 (Ra80, Ra90 optional)
Power Factor：    >0.95
IP&IK Rating：    IP66 / IK10
Life Time：    L70/B10 >50,000hours
Warranty：    5 Years / 7 years extended warranty available
Dimmable：    Dimmable and Non-dimmable
Beam Angle：    15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
Certification：    TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved

View Dimensional Drawings

Waterproof IP66 & IK08
Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.

Photometrics
Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

Application
Ideal for outdoor crossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.

LED lighting solution customization
Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.
