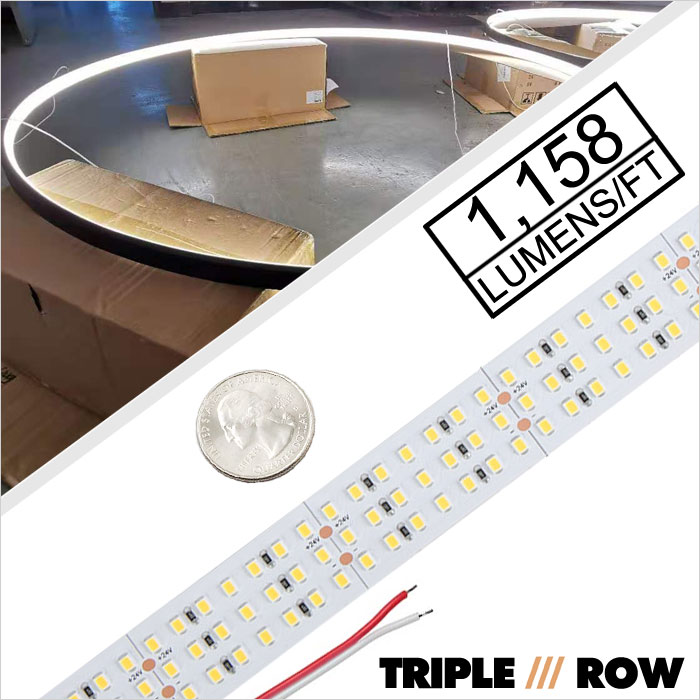

This super-bright LED light strip from Highlight Series is great for creating a high-power light fixture. It operates on 24 VDC and can be used in longer runs than 12V strips. The powerful LED tape light emits 1,158 lumens of cool, natural, or warm white illumination per foot. And with a high CRI (color-rendering index) of up to 94, light from the LEDs will show the true colors of any object or surrounding. The triple-row LED tape light is available in custom lengths up to 98'. It can be easily cut into separate 21-LED segments and installed with its peel-and-stick 3M™ adhesive backing. This strip must run back to the power source every 16.4' to avoid excessive voltage drop. The strip light is designed to last 60,000 hours. It's great for retail shops, supermarkets, food and meat cases, museums, galleries, videography, and other indoor applications where presentation, appearance, and depth of color are critical.

Features:

1. 90+ CRI rating ensures vibrant, natural-looking color tones
2. 24 VDC input
3. Max Run: 16.4ft (5m)
4. 21 LEDs/segment
5. Segment Length: 1.97in (50mm)
6. Density: 128 LEDs/ft
7. Strip Width: 25mm (0.98in)
8. Dimmable: 0-100%
9. IP20 rated for dry conditions
10. 36000 hours L70 lifespan
11. CE certified
12. 5 year warranty

High CRI 90 Series
CRI (color rendering index) is a measurement of how accurately a light source illuminates objects' true colors. Our LED lights have CRI95+, indicating that our LED strips are able to produce white light that approximates halogen or incandescent lighting and natural daylight.

Available Colors CCTs

Warranties & Certifications

Application & Use
SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Incorrect Use:

Packaing Diagram

Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement，such as transportation fee, installation fee, etc.


Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
