    Surface Mount (SMD)

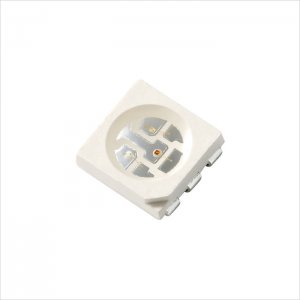

    5050 SMD LED Series - RGB Surface Mount LED w/ 120 Degree Viewing Angle
    This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA Forward Voltage:  R:2.0 G:3.2...
    In Stock
    $0.59
    ea.

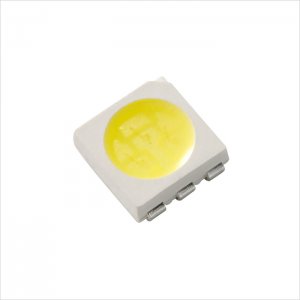

    5050 SMD LED Series - 6500K Pure White Surface Mount LED w/120 Degree Viewing Angle
    This 5050 SMD 3 chip surface mount component LED in Pure White features 19 lumens of 6500K color temperature and a 120 degree viewing angle. Price listed is per unit, Also available in Warm White and Cool White. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA CRI:  78 CRI Forward Voltage:  3.2V LED Color:  Pure White LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:  9 Lumen Maximum Forward Voltage:  3.4V Millicandela:...
    In Stock
    $0.49
    ea.

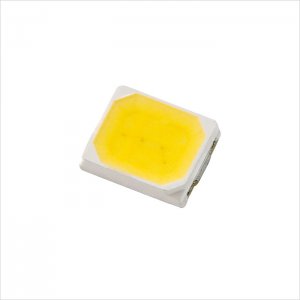

    2835 SMD LED Series - 6000K Cool White Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Cool White features 25 lumens of 6000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, Also available in Natural White and Warm White. Series Outline Dimensions TECHNICAL DETAILS CRI:  80 CRI Color Temperature:  6000 K Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Cool 6000K LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  25 Lumen...
    In Stock
    $0.29
    ea.

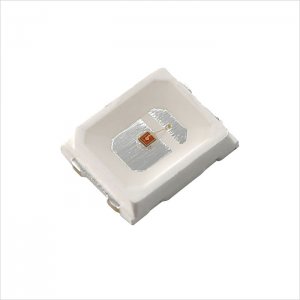

    2835 SMD LED Series - 625nm Red Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Red features a 625nm wavelength and a 120 degree viewing angle. Price listed is per unit, Also available in Green, Blue, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Red LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  6-8LM Millicandela:  1200mcd Operating Temperature:  -20~+80 °C (-4~+176 °F) Power...
    In Stock
    $0.29
    ea.

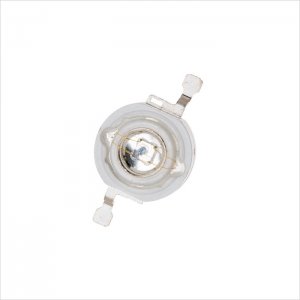

    1 Watt Ultraviolet SMD LED - 394nm UV Surface Mount LED
    This 1 Watt Surface Mount LED features 130mW radiant power, 394nm wavelength, and a wide 130 degree viewing angle. TECHNICAL DETAILS Continuous Forward Current (IF):  350 mA Current Draw:  0.35A (350mA) Forward Voltage:  3.4V LED Color:  UV (Blacklight) LED Package:  14.5 mm x 7.5 mm Millicandela:  N/A Operating Temperature:    -30~+100 °C (-22~+212 °F) Peak Forward Current (IFM):  500mA Radiant Power:    130mW Storage...
    In Stock
    $5.79
    ea.
    5050 SMD LED Series - 625nm Red Surface Mount LED w/120 Degree Viewing Angle
    The 5mm 3 chip surface mount component LED in Red features a 625nm wavelength and a 120 degree viewing angle. Price listed is per unit, available in Green, Blue, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA Forward Voltage:  2.0V LED Color:  Red LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:  4 Lumen Millicandela:  1200mcd Operating Temperature: -20~+80 °C (-4~+176 °F) Power Dissipation:...
    In Stock
    $0.49
    ea.
    5050 SMD LED Series - 465nm Blue Surface Mount LED w/120 Degree Viewing Angle
    The 5mm 3 chip surface mount component LED in Blue features a 465 nm wavelength and a 120 degree viewing angle. Price listed is per unit. Also available in Green, Red, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA Forward Voltage:  3.2V LED Color:  Blue LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:    4 Lumen Millicandela:  1200mcd Operating Temperature:    -20~+80 °C (-4~+176...
    In Stock
    $0.49
    ea.
    5050 SMD LED Series - 520nm Green Surface Mount LED w/120 Degree Viewing Angle
    The 5mm 3 chip surface mount component LED in Green features a 520 nm wavelength and a 120 degree viewing angle. Price listed is per unit, Also available in Red, Blue, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA Forward Voltage:  3.2V LED Color:  Green LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:    11 Lumen Maximum Forward Voltage:  3.4V Millicandela:  3500mcd Operating...
    In Stock
    $0.49
    ea.
    5050 SMD LED Series - 590nm Yellow Surface Mount LED w/120 Degree Viewing Angle
    The 5mm 3 chip surface mount component LED in Yellow features a 590 nm wavelength and a 120 degree viewing angle.Price listed is per unit, Also available in Green, Red, and Blue. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  3x20 mA Forward Voltage:  2.0V LED Color:  Yellow LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:    4 Lumen Maximum Forward Voltage:  2.2V Millicandela:  1200mcd Operating...
    In Stock
    $0.49
    ea.
    5050 SMD LED Series - 10500K Cool White Surface Mount LED w/120 Degree Viewing Angle
    This 5050 SMD 3 chip surface mount LED in Cool White features 19 lumens of 10500K color temperature and a 120 degree viewing angle. Price listed is per unit, Also available in Warm White and Pure White. Series Outline Dimensions TECHNICAL DETAILS Color Temperature:  10500 K Continuous Forward Current:  3x20 mA CRI:  85 CRI Forward Voltage:  3.2V LED Color:  Cool 10500K LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:    19 Lumen Maximum...
    In Stock
    $0.49
    ea.
    5050 SMD LED - 3100K Warm White Surface Mount LED w/120 Degree Viewing Angle
    This 5050 SMD 3 chip surface mount component LED in Warm White features 19 lumens of 3100K color temperature and a 120 degree viewing angle. Price listed is per unit, Also available in Pure White and Cool White. Series Outline Dimensions TECHNICAL DETAILS Color Temperature:  2850 K Continuous Forward Current:  3x20 mA CRI:  72 CRI Forward Voltage:  3.2V LED Color:  Warm 2850K LED Package:  5mm x 5mm LED Type:  5050 SMD Lumen:  19 Lumen Maximum Forward...
    In Stock
    $0.49
    ea.
    2835 SMD LED Series - 4000K Natural White Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Natural White features 25 lumens of 4000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, Also available in Cool White and Warm White. Series Outline Dimensions TECHNICAL DETAILS CRI:  80 CRI Color Temperature:  4000 K Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Natural 4000K LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  25 Lumen...
    In Stock
    $0.29
    ea.
    2835 SMD LED Series - 3000K Warm White Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Warm White features 25 lumens of 3000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, Also available in Cool White and Natural White. Series Outline Dimensions TECHNICAL DETAILS CRI:  80 CRI Color Temperature:  3000 K Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Warm 3000K LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  25 Lumen...
    In Stock
    $0.29
    ea.
    2835 SMD LED Series - 465nm Blue Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Blue features a 465nm wavelength and a 120 degree viewing angle. Price listed is per unit, Also available in Green, Red, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Blue LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  6-8LM Millicandela:  1200mcd Operating Temperature:  -20~+80 °C (-4~+176 °F) Power...
    In Stock
    $0.29
    ea.
    2835 SMD LED Series - 520nm Green Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Green features a 520nm wavelength and a 120 degree viewing angle. Price listed is per unit, Also available in Blue, Red, and Yellow. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Green LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  6-8LM Millicandela:  1200mcd Operating Temperature:  -20~+80 °C (-4~+176 °F) Power...
    In Stock
    $0.29
    ea.
