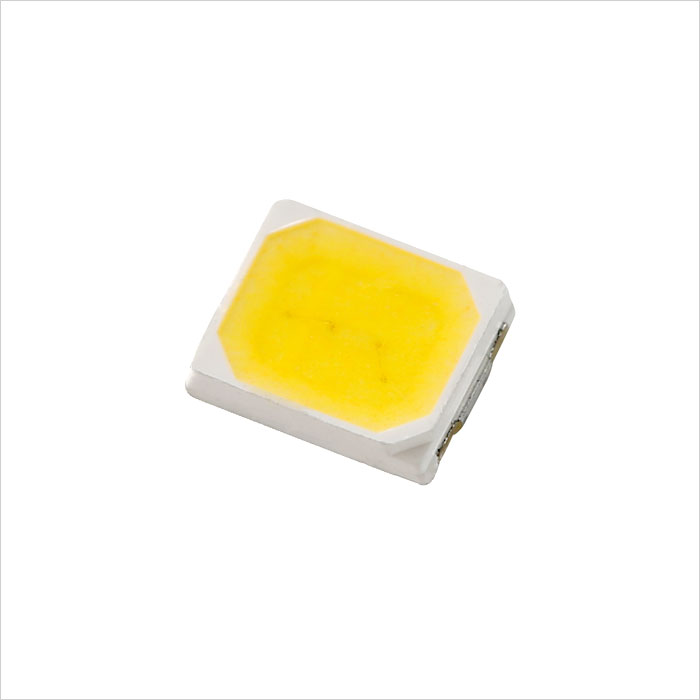

This Epistar 2835 SMD surface mount component LED in Natural White features 25 lumens of 4000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, Also available in Cool White and Warm White.

Series

Outline Dimensions

TECHNICAL DETAILS
CRI:  80 CRI
Color Temperature:  4000 K
Continuous Forward Current:  60mA
Forward Voltage:  3.2V
LED Color:  Natural 4000K
LED Package:  2.8mm x 3.5mm
LED Type:  2835 SMD
Lumen:  25 Lumen
Maximum Forward Voltage:  3.4V
Millicandela:  8000mcd
Operating Temperature:    -20~+85 °C (-4~+185 °F)
Power Dissipation:  0.2W
Reverse Voltage:  5V
Storage Temperature:  -40~+85 °C
Total Power Consumption:  2.2 Watts
Viewing Angle:    120 degree
Package Weight:  0.01oz (0kg)
Package Dimensions:  0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.

Product Parameters

Packaging Specifications
