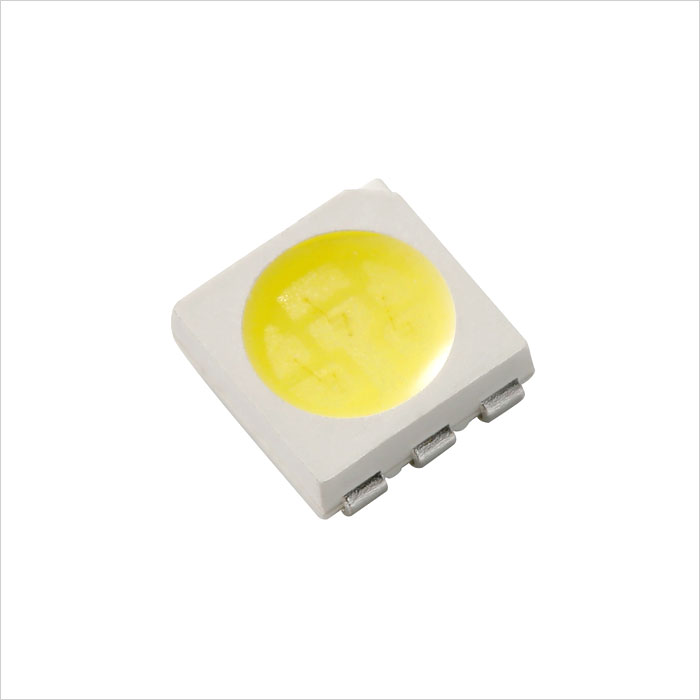

This 5050 SMD 3 chip surface mount component LED in Pure White features 19 lumens of 6500K color temperature and a 120 degree viewing angle. Price listed is per unit, Also available in Warm White and Cool White.

Series

Outline Dimensions

TECHNICAL DETAILS
Continuous Forward Current:  3x20 mA
CRI:  78 CRI
Forward Voltage:  3.2V
LED Color:  Pure White
LED Package:  5mm x 5mm
LED Type:  5050 SMD
Lumen:  9 Lumen
Maximum Forward Voltage:  3.4V
Millicandela:  6000mcd
Operating Temperature:  -20~+80 °C (-4~+176 °F)
Reverse Voltage:  5V
Storage Temperature:  -40~+85 °C
Total Power Consumption:  0.192 Watts
Viewing Angle:  120 degree
Package Weight:  0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.

Product Parameters

Packaging Specifications
