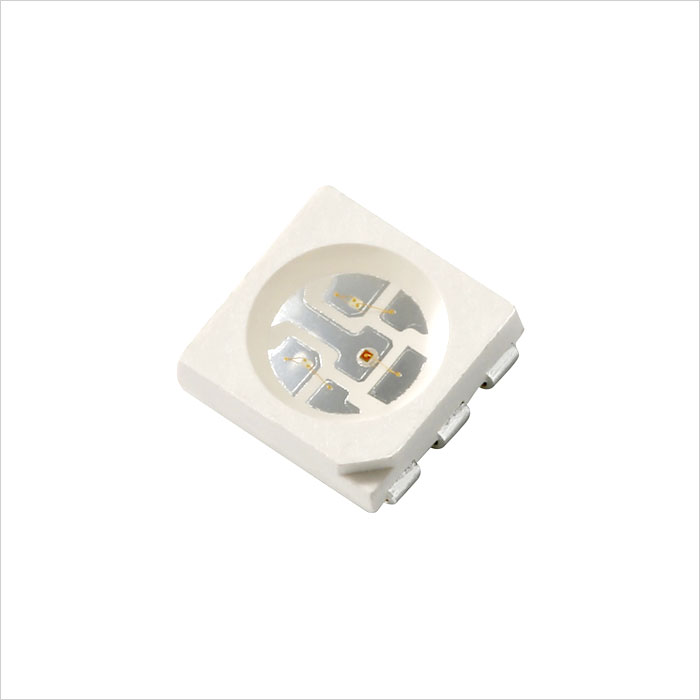

This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White.

Series

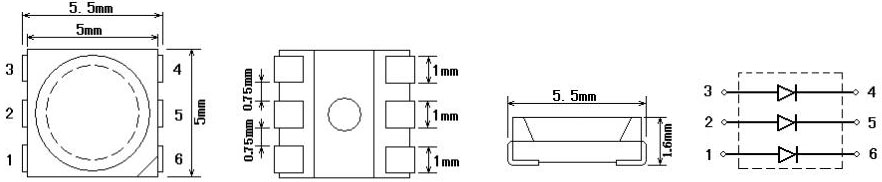

Outline Dimensions

TECHNICAL DETAILS
Continuous Forward Current:  3x20 mA
Forward Voltage:  R:2.0 G:3.2 B:3.2
LED Color:  RGB
LED Package:  5mm x 5mm
LED Type:  5050 SMD
Lumen:    3.14 Lumen
Millicandela:  1000mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Reverse Voltage:  5V
Storage Temperature:  -40~+85 °C
Total Power Consumption:  0.192 Watts
Viewing Angle:    120 degree
Wavelength:  465 nm, 520 nm, 625 nm
Package Weight:  0.01oz (0kg)
Package Dimensions:  0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.

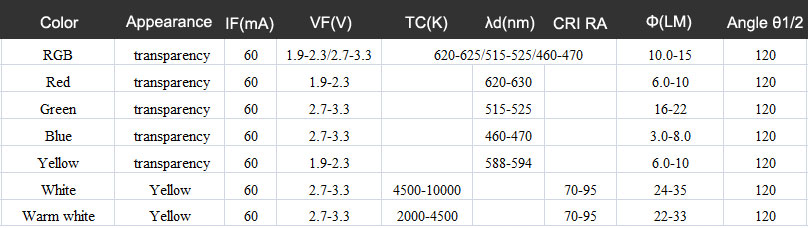

Product Parameters

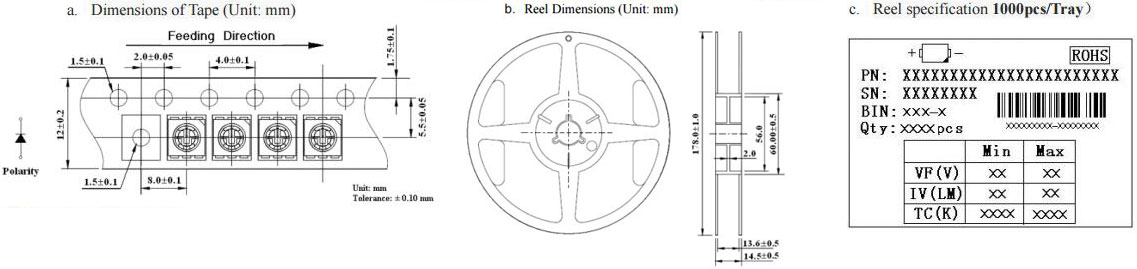

Packaging Specifications

Wavelengths
