    Surface Mount (SMD)


    2835 SMD LED Series - 590nm Yellow Surface Mount LED w/120 Degree Viewing Angle
    This Epistar 2835 SMD surface mount component LED in Yellow features a 590nm wavelength and a 120 degree viewing angle. Price listed is per unit, Also available in Blue, Red, and Green. Series Outline Dimensions TECHNICAL DETAILS Continuous Forward Current:  60mA Forward Voltage:  3.2V LED Color:  Yellow LED Package:  2.8mm x 3.5mm LED Type:  2835 SMD Lumen:  6-8LM Millicandela:  1200mcd Operating Temperature:  -20~+80 °C (-4~+176 °F) Power...
    In Stock
    $0.29
    ea.
    WS2811 NeoPixel LED Driver Chip - Addressable RGB LED Driver IC - 10 Pack
    Make your own smart LEDs with the same chip that is used in our NeoPixel strip and pixels. This tiny SOIC-8 is fairly easy to solder and can drive a single common-anode RGB LED or three single-color LEDs of your choice. (The outputs are NPN transistors so they won't work with common-cathode!) The outputs are each ~18mA constant current so the color will be very consistent even if the voltage varies, and no choke resistors are required making your design minimal. The pixels are...
    In Stock
    $4.95
    ea.

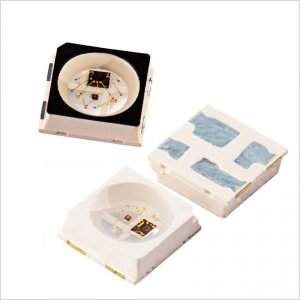

    NeoPixel Mini 3535 RGB LEDs w/ Integrated Driver Chip - Black/White - Pack of 10
    Itsy Bitsy Teenie Weenie Mini NeoPixel RGB LEDinis! Make your own smart LED arrangement with the same integrated LED that is used in our NeoPixel strips and pixels. We use this same LED in our Metro M4 Express and Neo TrinKey. These MINI (3.5mm x 3.5mm) RGB LEDs are fairly easy to solder and are half the size of the standard 5x5mm NeoPixels you may be used to seeing. They're one of the most compact ways possible to integrate multiple bright LEDs into a design. The driver chip is inside the...
    In Stock
    $4.95
    ea.

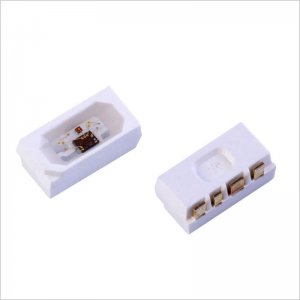

    NeoPixel Side-Light RGB LED w/ Integrated Driver Chip - 10-pack - SK6812B 4020
    Make your own smart LED arrangement with the same fancy side light integrated LED that is used in our HalloWing M4, and side-emitting NeoPixel strip and pixels. These bare LEDs are a great alternative for folks who have loved and used Smart Bright LEDs NeoPixel strips for a few years but want gorgeous, glowy light emitting at 90 degrees. This small 4020 (4mm x 2mm) RGB LED is fairly easy to solder and is the most compact way possible to integrate multiple bright LEDs to a design. The driver...
    In Stock
    $3.95
    ea.

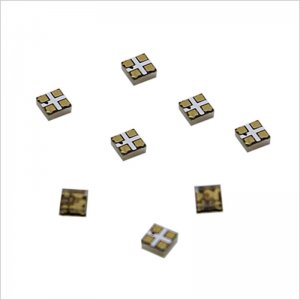

    NeoPixel Addressable 1515 LEDs (1.5mm x 1.5mm) - 10 pack - SK6805-E-J
    Make your own smart LED arrangement with the same integrated LED that is used in our NeoPixel strip and pixels. This tiny 1515 (1.5mm x 1.5mm) RGB LED is designed to be surface-mount soldered and is the most compact way possible to integrate multiple bright LEDs to a design. The driver chip is inside the LED and has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making your design minimal. Power the...
    In Stock
    $3.95
    ea.

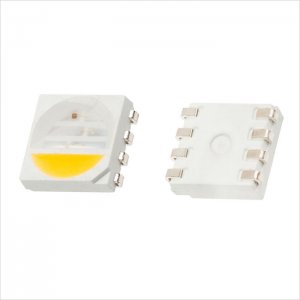

    5050 SMD LED - RGB/Cool White Surface Mount LED w/ 120 Degree Viewing Angle - 10 Pack
    This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The cool white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and cool white has a 6500K CCT. The LED emits a wide 120°...
    In Stock
    $5.95
    ea.
    5050 SMD LED - RGB/Natural White Surface Mount LED w/ 120 Degree Viewing Angle - 10 Pack
    This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The natural white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and natural white has a 4000K CCT. The LED emits a wide...
    In Stock
    $5.95
    ea.
    5050 SMD LED - RGB/Warm White Surface Mount LED w/ 120 Degree Viewing Angle - 10 Pack
    This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The warm white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and warm white has a 3000K CCT. The LED emits a wide 120°...
    In Stock
    $5.95
    ea.

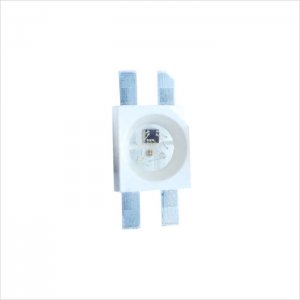

    NeoPixel Reverse Mount RGB LEDs - 10 Pack of SK6812-E
    These reverse mount NeoPixel LEDs are an easy way to add a lot of small (but bright!) colorful LEDs to your project when you want the top of the PCB to be flat, or to keep manufacturing simplified by having only one side of components. They are just 3.1mm x 2.7mm x 1.7mm and can be soldered reverse mount-style using the top pads and a cutout in the PCB. Thanks to the long pads, they're not too bad to hand solder! The driver chip is inside the LED and has ~12mA constant current drive, so the...
    In Stock
    $2.95
    ea.
