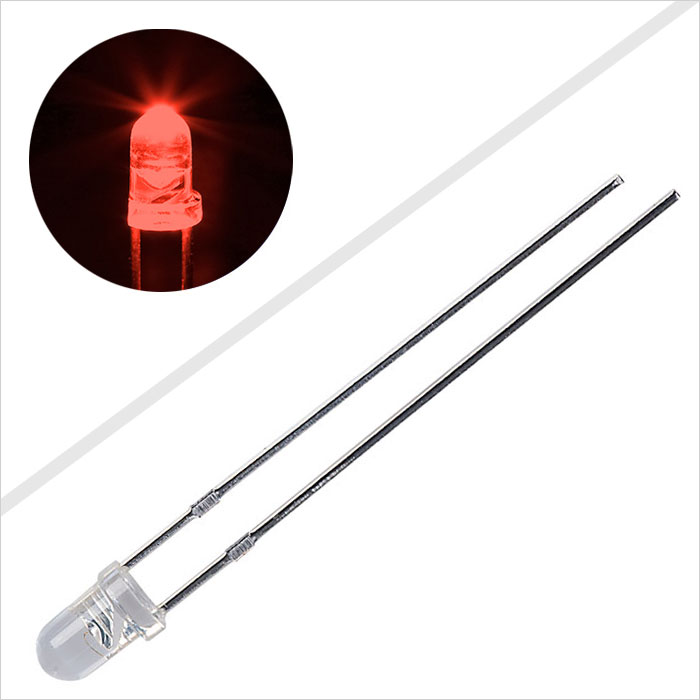

3mm through hole component LED in orange. Features 3,200 millicandela, 605nm wavelength, and a 14 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

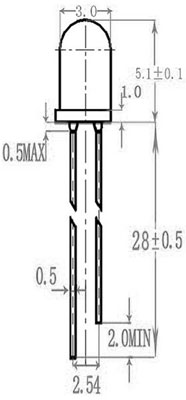

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    20 mA
Forward Voltage:    2.2V
LED Color:    Orange
LED Package:    3 mm (T-1)
Lens:    Clear
Lumen:    0.15 Lumen
Maximum Forward Voltage:    2.7V
Millicandela:    3200mcd
Operating Temperature:    -40~+85 °C (-40~+185 °F)
Peak Forward Current:    50mA
Power Dissipation:    100mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -40~+85 °C
Total Power Consumption:    0.04 Watts
Tube Diameter:    T-1
Viewing Angle:    14 degree
Wavelength:    605 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.24" (1cm) x 0.16" (0cm) x 0.16" (0cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.

Wavelengths
