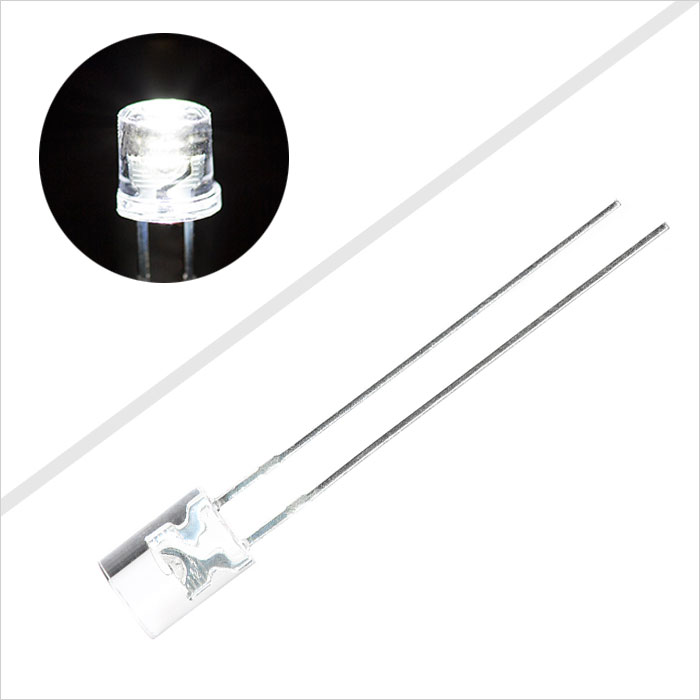

5mm through hole Cool White LED. Features 7650K color temperature and 1,500mcd. It has a 120 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

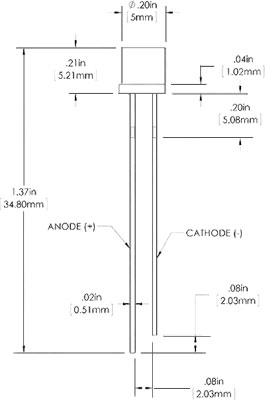

Dimensional Drawings

TECHNICAL DETAILS
Color Temperature:    7650 K
Continuous Forward Current:    30 mA
Forward Voltage:    3.3V
LED Color:    Cool 7650K
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    5 Lumen
Maximum Forward Voltage:    3.8V
Millicandela:    1500mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Power Dissipation:    120mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.099 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    120 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
