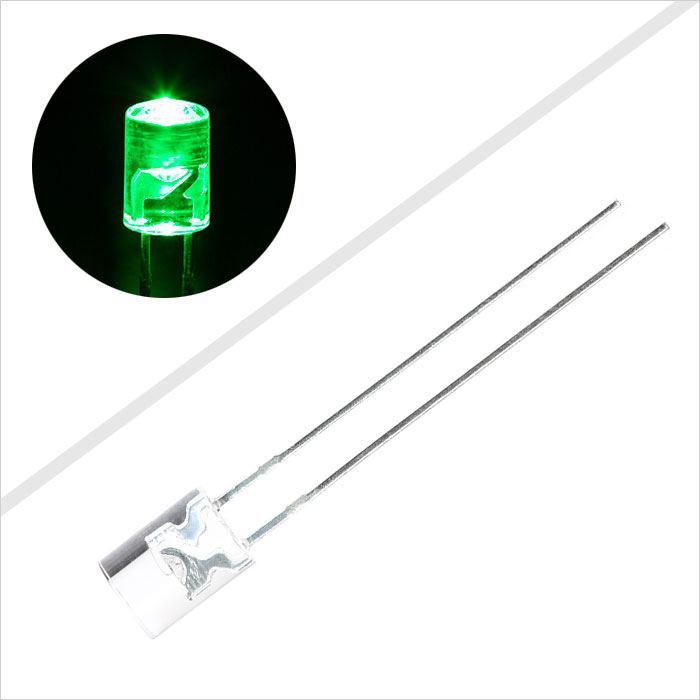

5mm through hole component LED in green. Features 1,600 millicandela, 523nm wavelength, and a wide 120 degree view angle via the flat top design. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    30 mA
Forward Voltage:    3.3V
LED Color:    Green
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    5 Lumen
Maximum Forward Voltage:    3.8V
Millicandela:    1600mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Power Dissipation:    120mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.099 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    120 degree
Wavelength:    523 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.

Wavelengths
