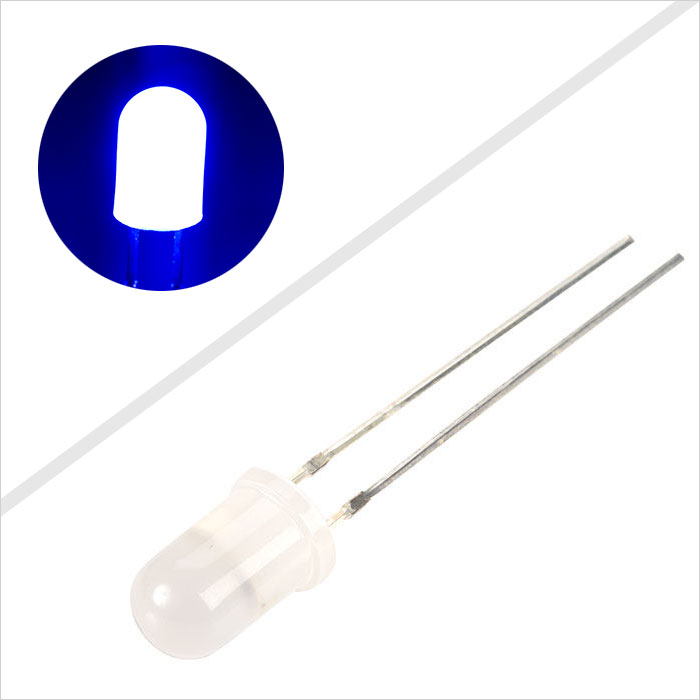

Blue through hole 5mm LED. Features 800 millilumens and 462nm wavelength. This unique LED has a diffuser coating which emits blue light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

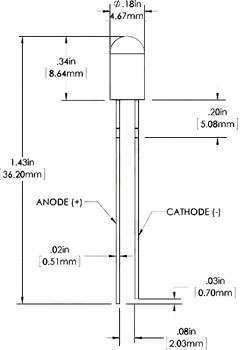

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    20 mA
Forward Voltage:    3.0V
LED Color:    Blue
LED Package:    5 mm (T-1 3/4)
Lens:    Diffused
Lumen:    0.8 Lumen
Maximum Forward Voltage:    3.2V
Millicandela:    100mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.06 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    360 degree
Wavelength:    462 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
